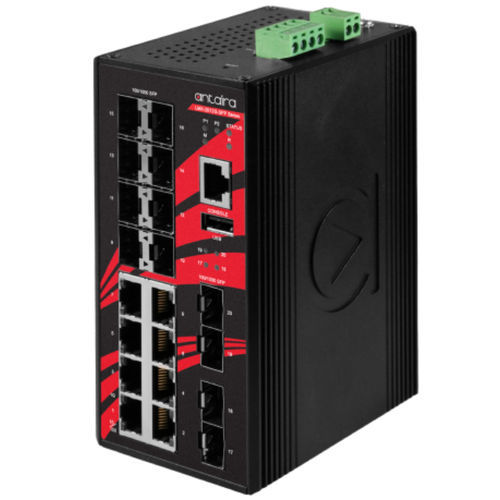

Managed ethernet switch LMX-2012G-SFP

20 portslayer 3gigabit Ethernet

Product Overview Antaira Technologies’ LMX-2012G-SFP is a 20-port industrial Gigabit managed Ethernet switch that is embedded with 8*10/100/1000Tx Ethernet ports and 12*100/1000 SFP slots. The LMX-2012G-SFP is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as, IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMX-2012G-SFP is IP30 rated and DIN-rail mountable. It supports operating temperature from -10° to 65°C. It also provides high EFT and ESD protection for industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance within transportation, ITS and any other outdoor or harsh environment. Features - Supports 8*10/100/1000Tx Gigabit Ethernet and 12*100/1000 SFP Slots - Network Redundancy Support: STP/RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms) - Supports IPv4/IPv6, and DHCP Option 66/67/82 - Supports Modbus/TCP Protocol for Device Management and Monitoring - IGMP v1/v2/v3 for Multicast Traffic Filtering - QoS (IEEE 802.1p/1Q), CoS/ToS to Increase Determinism - IEEE802.1Q VLAN for Easy Network Planning - Enhanced Network Security with IEEE802.1X, SNMP v1/v2c/v3, HTTPS, and SSH/SSL - Auto Warning by Exception through Relay Output - Operating Temperature Range: -10° to 65°C (STD) - 5-Year Warranty Package Content - LMX-2012G-SFP - Quick Installation Guide - Wall mounting bracket set with screws - DC cable - 18AWG & DC jack 5.5 x 2.1mm Wire: White (+) / Black (-) - Dust cover set - RJ45 to DB9 serial console cable Technical Specifications - IEEE Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, IEEE 802.3z 1000Base-X Gigabit Fiber, IEEE 802.3x Flow Control, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.1d STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, ITU-TG.8032 / Y.1344 ERPS, IEEE 802.1Q VLAN, IEEE 802.1x Network Authentication, IEEE 802.1p QoS/CoS - Processing Type: Store and Forward - Protocols: IGMP v1/v2/v3, SNMP v1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6 - Flow Control: IEEE 802.3x flow control, back pressure flow control - Configuration: Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3 - VLAN Groups: 4095 groups - IGMP Groups: 1024 groups - Ethernet Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms) - MAC Table Size: 8K - Jumbo Frame: 9.6 Kbytes - Memory Buffer: 4 Mbits - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet Port - Switching Architecture: Back-Plane (Switching Fabric): 40Gbps - Ethernet Port Count: 8 ports (10/100/1000 BASE-T(X)) - Fiber Port Count: 12 ports (100/1000 BASE-(F)X SFP) - Wavelength: Refers to SFP module - LED Indicators: System: Power 1, Power 2, Status(S), Master(M), Ring(R); Ethernet: Speed/Link/Active; SFP: Link/Active - Housing: Metal, IP30 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 71.5 x 142 x 99 mm - Weight: Unit weight: 3.4 lbs; Shipping weight: 4.18 lbs - Power Connection: One removable 4-contact and One 2-contact terminal block - Input Voltage: 12V–48V DC, Redundant Input - Power Redundancy: Yes - Relay Output: 24V DC, 1A resistive - System Power Consumption: 19 Watts - Overload Current Protection: Present - Reverse Polarity Protection: Present - Operating Temperature: -10° to 65° C (14° to 149° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing - Certifications: FCC, CE, UL 61010-1 / UL 61010-2-201, NEMA TS2 - EMI: FCC Part 15 Subpart B Class A, CE EN55032 Class A, EN61000-6-4 Class A - EMS: CE EN55035/EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6 - Green: RoHS Compliant - Warranty: 5 years
