Unmanaged ethernet switch LNP-0501-ST-S3-24

5 portsfast ethernetDIN rail

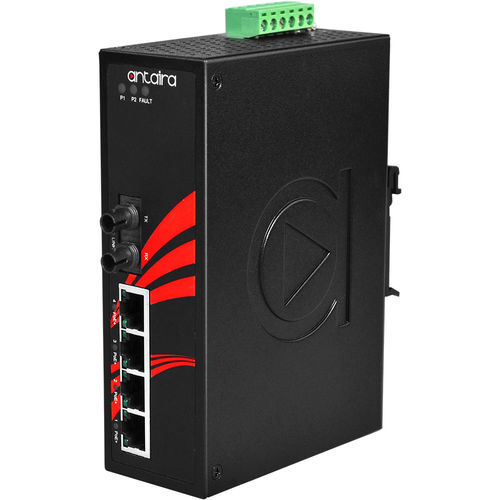

Product Overview Antaira Technologies’ LNP-0501-ST-S3-24 is an industrial PoE+ unmanaged Ethernet switch featuring 4*10/100Tx Fast Ethernet RJ45 ports and 1*100Fx fiber port with ST connectors for single-mode 30Km. Each Ethernet port supports an IEEE 802.3at high power PoE+ output up to 30W per port, making it ideal for applications that demand a PoE power source. This model provides a low voltage input range of 12~36VDC with an internal voltage booster to support a 48VDC PoE power output. LNP-0501-ST-S3-24 is IP30 rated and DIN-rail mountable, supporting operating temperature from -10° to 70° C. It also provides Ethernet connectivity with PoE functions and a fiber connection for mobile surveillance applications utilizing a low voltage power source as a battery, and for any other industrial automation field sites needing a 24VDC power source, such as, security surveillance, traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and automated production lines in factory automation. Features - 4-Port IEEE 802.3at Compliant PoE+ Function with 30W/Port - 1-Port 100Fx ST Type Connector (Single-Mode 30Km) - Supports Auto MDI/MDI-X Function - Store-and-Forward Switching Architecture - 2K MAC Address Table - Surge Protection: 2,000 VDC Support - ESD Protection: 6,000 VDC Support - Redundant Power Input Design – 12~36VDC - Built-in 1 Relay Output for Power Failure Warning - IP30 Rugged Metal Case Design - DIN-Rail and Wall Mount Support - Operating Temperature Range - STD: -10° to 70°C - 5-Year Warranty Package Content - 1 - LNP-0501-ST-S3-24 - 2 - Wall Mounting brackets and screws - 1 - DC cable –18 AWG & DC jack 5.5x2.1mm Optional Accessories - DIN-RACK-2U: Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height - NDR-120-24: 120W Single Output Industrial Din-Rail Power Supply, 24VDC Output - SDR-240-24: 240 Watt Series / 24 VDC / 10.0 Amps Industrial Slim High-Efficiency Single Output DIN Rail Power Supply Technical Specifications Technology - IEEE Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3x Flow Control, IEEE 802.3af/at Power over Ethernet - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x flow control, back pressure flow control Performance - MAC Table Size: 2K - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port - Switching Architecture: Back-Plane (Switching Fabric): 1Gbps Ethernet Interface - Ethernet Port Count: 4 ports - 10/100 BASE-T(X): 4 ports - PoE Port: 4 ports (30W/port) - PoE Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) Fiber Interface - Fiber Port Count: 1 port - 100 BASE-FX Fiber: 1 port (ST connector) - Wavelength: 1310nm (Single-mode) Mechanical Characteristics - Housing: Metal, IP30 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 46 × 142 × 99 mm - Weight: Unit weight: 1.68 lbs, Shipping weight: 2.0 lbs Power Requirements - Power Connection: Removable 6-contact terminal block - Input Voltage: 12V–36V DC, Redundant Input - Power Redundancy: Yes - Relay Output: 24V DC, 1A resistive - System Power Consumption: 5 Watts - Max. PoE Power Budget: 90W@12VDC, 120W@36VDC - Overload Current Protection: Present - Reverse Polarity Protection: Present Environmental Limits - Operating Temperature: -10° to 70° C (14° to 158° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing Regulatory Approvals - Certifications: FCC, CE - UL 508: ✔ - EMI: FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A - EMS: CE EN 55024, EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC60068-2-27, Vibration: IEC60068-2-6 - Green: RoHs Compliant - Warranty: 5 years
