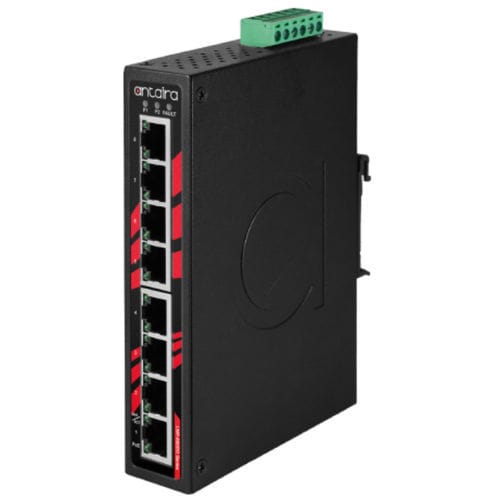

Unmanaged ethernet switch LNP-0800G

8 portsgigabit Ethernetgigabit

Product Overview Antaira Technologies’ LNP-0800G is an 8-port industrial PoE+ gigabit unmanaged Ethernet switch that supports 8*10/100/1000T Ethernet ports. The LNP-0800G is a backward compliant PoE+ switch that will support IEEE 802.3af/at standards providing a maximum of 30 watts per port with an input voltage of 48~55VDC. Antaira’s LNP-0800G has been specifically designed for rugged and harsh environmental deployments. It is housed in a hardened IP30-rated metal enclosure that includes DIN-rail and wall mounting hardware. This operating temperature of this model is standard temperature range from -10°C to 65°C. The LNP-0800G also provides high EFT and ESD protection for any industrial networking application within factory automation, ITS (including on-vehicle), solar, security, or any other outdoor or harsh environment. Features - Supports 8*10/100/1000T IEEE 802.3af/at Compliant with 30W/Port - Supports 9.6Kbytes Jumbo Frame - Supports Auto MDI/MDI-X Function - Store-and-Forward Switching Architecture - Power Input: 48~55VDC in 6-Pin Terminal Block - Built-in 1 Relay Output for Power Failure Warning - IP30 Rugged Metal Case Design - DIN-Rail and Wall Mount Support - Operating Temperature: -10°C to 65°C - 5-Year Warranty Package Content - LNP-0800G - Quick Installation Guide - Wall mounting bracket set with screws - DC cable- 18AWG & DC jack 5.5 x 2.1mm**Wire: White (+) / Black (-) - RJ45 dust cover set Optional Accessories - DIN-RACK-2U: Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height - DRP-240-48: 240 Watt Industrial Single Output DIN Rail Power Supply - 48 VDC / 5.0 Amps Technical Specifications - IEEE Standards: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3af/at Power over Ethernet - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x flow control, back pressure flow control - MAC Table Size: 8K - Jumbo Frame: 9.6 Kbytes - Memory Buffer: 4 Mbits - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet Port - Switching Architecture: Back-Plane (Switching Fabric): 16Gbps - Ethernet Port Count: 8 ports - 10/100/1000 BASE-T(X): 8 ports - PoE Port: 8 ports (30W/port) - PoE Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) - LED Indicator: System: Power 1, Power 2, Fault; Ethernet Ports: On-Link/Flash-data transmitting; PoE: On-connected to PD devices - Housing: Metal, IP30 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 30 x 142 x 99 mm - Weight: Unit: 1.55 lbs.; Shipping: 1.9 lbs. - Power Connection: Removable 6-contact terminal block - Input Voltage: 48V–55V DC, Redundant Input - Power Redundancy: Yes - Relay Output: 24V DC, 1A resistive - System Power Consumption: 11 Watts - Max. PoE Power Budget: 240 Watts - Overload Current Protection: Present - Reverse Polarity Protection: Present - Operating Temperature: -10° to 65° C (14° to 149° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing - Certifications: FCC, CE, UL 61010-1 / UL 61010-2-201, ISA 12.12.01 (UL C1D2) - EMI: FCC Part 15 Subpart B Class A, CE EN55032 Class A, EN61000-6-4 Class A - EMS: CE EN 55035, EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC60068-2-27, Vibration: IEC60068-2-6 - Green: RoHs Compliant - Warranty: 5 years
