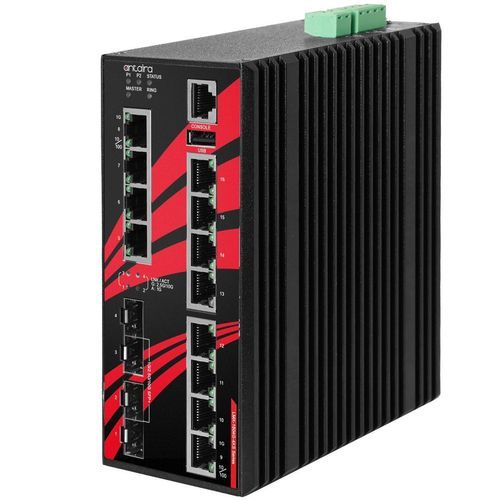

Managed ethernet switch LMX-1604G-4XS-T

16 portslayer 3gigabit Ethernet

Product Overview Antaira Technologies’ LMX-1604G-4XS(-T) is a 16-port managed gigabit Ethernet switch embedded with 12*10/100/1000T Ethernet ports and 4*1G/2.5G/10G SFP+ slots for fiber connection. It is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. LMX-1604G-4XS(-T) is IP30 rated and DIN-rail mountable. It supports extended operating temperature from -40°C to 75°C. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment. With a compact form and all connections facing the front of the Ethernet switch making it easy viewing of installations in a reserved space. Features - Support 12*10/100/1000BASE-T Gigabit Ports - Support 4*1G/2.5G/10G SFP+ Slots - ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) Protocol - IEEE 802.1D STP (Spanning Tree Protocol), IEEE 802.1w RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) - Static Routes, ARP - SNMPv1/v2c/v3, RMON, Modbus TCP, and HTTP/HTTPS - RADIUS, TACACS+, 802.1X Authentication - ACL, IP Source Guard - VLAN, QoS, and SNMPv3 - IP30 Rugged Metal Case Design - Redundant Power Input - Fanless Operation - Power Reverse Polarity Protection - High EFT and ESD Protection - Operating Temperature: -40°C to 75°C - 5-Year Warranty Package Content - 1 x DC cable –18 AWG & DC jack 5.5x2.1mm - 1 x LMX-1604G-4XS-T - 1 x Quick Installation Guide - 1 x Wall mounting brackets set with screws - 1 x RJ45 to DB9 Serial Console Cable Technical Specifications - IEEE Standards: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Fiber, IEEE 802.3ae 10Gigabit Fiber, IEEE 802.3x Flow Control for Full Duplex, IEEE 802.3ad for Port Trunk with LACP, IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, IEEE 802.1Q for VLAN Tagging, IEEE 802.1X for Network Authentication, IEEE 802.1p QoS/CoS Protocol, ITU-T G.8032/Y.1344 ERPS, IEEE 802.1AB LLDP - Processing Type: Store and Forward - Protocols: IGMP v1/v2/v3, SNMP v1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6 - Flow Control: IEEE 802.3x flow control, back pressure flow control - Configuration: HTTP, HTTPS, Telnet, SSH, CLI, TFTP, SNMP v3 - VLAN Groups: 4095 groups - IGMP Groups: 1024 - Ethernet Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms) - MAC Table Size: 32K - Jumbo Frame: 9.6Kbytes - Memory Buffer: 32Mbits - Transfer Rate: 77.37 Mpps - Switching Architecture: 104Gbps - Ethernet Port Count: 12 ports (10/100/1000 BASE-T(X)) - Fiber Port Count: 4 ports (1G/10G SFP+) - Wavelength: Refers to SFP module - LED Indicators: System: Power 1, Power 2, Master (M), Ring (R), Status; Ethernet ports: Speed/Link/Active; SFP: Link/Active - Housing: Metal, IP30 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 72 x 160 x 130mm - Weight: Unit: 4.22lb; Shipping: 5.25lb - Power Connection: One removable 4-contact and One 2-contact terminal block - Input Voltage: 12-48V DC, Redundant Input - Power Redundancy: Yes - Relay Output: 24VDC, 1A resistive - System Power Consumption: 24W - Overload Current Protection: Present - Reverse Polarity Protection: Present - Operating Temperature: -40° to 75° C (-40° to 167° F) - Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) - Ambient Relative Humidity: 5% to 95% non-condensing - Certifications: FCC, CE - EMI: FCC Part 15 Subpart B Class A, CE EN55032 Class A, EN61000-6-4 Class A - EMS: CE EN 55035, EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC60068-2-27, Vibration: IEC60068-2-6 - MTBF: 406,943 hrs - Green: RoHS Compliant - Warranty: 5 years
