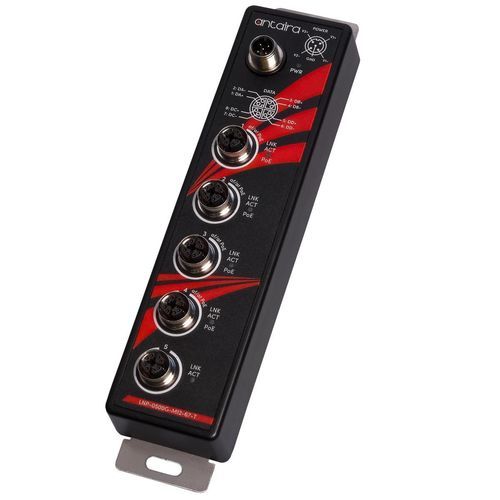

5 ports ethernet switch LNP-0500G-M12-67-T

gigabit Ethernetfast ethernetDIN rail

Introduction Antaira Technologies’ LNP-0500G-M12-67-T is equipped with one M12 A-coded power connector, 4x 30W 10/100/1000M M12 (X-coded) TX PSE, and 1x 10/100/1000M M12 (X-coded) TX. The M12 connector provides a strong and tight connection and ensures stable Ethernet operating performance that withstands humidity, dirt, dust, shock, vibrations, heat and cold. It has been rigorously tested and can meet the high-reliability requirements for moving vehicles, transportation, and security applications. Features - 4*10/100/1000BASE-TX Gigabit M12 (X-Coded) Port with IEEE 802.3af/at PoE+ (30W/Port) - 1*10/100/1000BASE-TX Gigabit M12 (X-Coded) Port - 1*M12 (A-Coded) Power Connector - Reverse Polarity Protection - Overload Current Protection - Operating Temperature: -40°C to 75°C - EN50155, EN50121 Rated - DIN-Rail or Wall Mountable - IP67 Rated - 5-Year Warranty Package Content - LNP-0500G-M12-67-T - Quick Installation Guide - Wall mounting kit - DIN-Rail mounting kit - Set of Dust caps (5) Optional Accessories - CB-M12A5PF-5M: M12 A Code 5P Female to Open Cable, 5 Meter, Wire: UL 24AWG*5C Black, IP68 Protection - CB-M12D4PM-RJ45-5M: M12 D Code 4P Male to RJ45 Cable, 5 Meter, Wire: CAT5e STP 24AWG Black, IP68 Protection Technical Specifications Technology - IEEE Standards: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-T Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3x Flow Control and Back Pressure, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet plus - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x flow control, back pressure flow control Performance - MAC Table Size: 2K - Jumbo Frame: 9.0Kbytes - Memory Buffer: 1Mbits - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet Port - Switching Architecture: Back-Plane (Switching Fabric): 10Gbps Ethernet Interface - Ethernet Port Count: 5 ports - 10/100/1000 BASE-T(X): 5 ports - PoE Port: 4 ports (30W/port) - PoE Pin Assignment: DA+, DA-, DB+, DB-, DD+, DD-, DC-, DC+ for pin 1, 2, 3, 4, 5, 6, 7, 8 - M12 Connector: 8-pin X-Coded female connector Other Interface - LED Indicator: PWR, LNK/ACT/PoE, LNK/ACT Mechanical Characteristics - Housing: Metal, IP67 protection - Mounting: DIN-Rail mount, Wall mount - Dimensions (W × H × D): 220 x 50 x 27.7mm / 8.6 x 1.97 x 1.09in - Weight: Unit: 0.50kg / 1.10lb; Shipping: 0.54kg / 1.18lb Power Requirements - Power Connection: M12, 5-pin A-coded male connector - Input Voltage: 48-56V DC, Redundant Input - Power Redundancy: Yes - System Power Consumption: 5W @ 48VDC full load, without PoE - Max. PoE Power Budget: 120W @ 56VDC, 100W @ 48VDC - Overload Current Protection: Present - Reverse Polarity Protection: Present Environmental Limits - Operating Temperature: -40° to 75° C (-40° to 167° F) - Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) - Ambient Relative Humidity: 5% to 95% non-condensing Regulatory Approvals - Certifications: FCC, CE - Railway: Full EN50155, EN 50121-3-2, EN 50121-4 - EMI: CISPR 32, FCC Part 15B Class A - EMS: IEC 61000-4-2,4,5 - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC60068-2-27, Vibration: IEC60068-2-6 - Safety: UL 62368-1, LVD (EN 62368-1) - MTBF: 546,613 hrs. At 25°C - Green: RoHS Compliant - Warranty: 5 years - UL 62368-1 LVD (EN 62368-1): ✔
