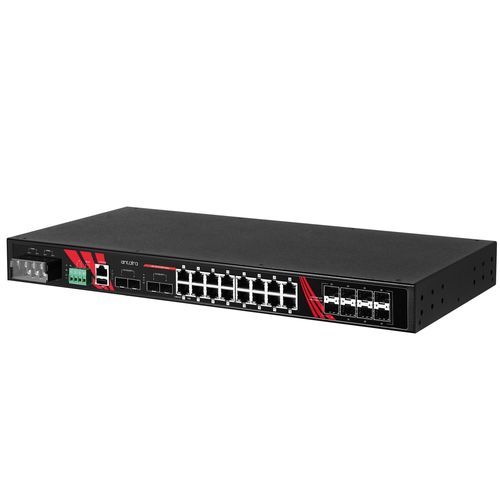

Managed ethernet switch LMP-2812G-4X8S-T

28 portslayer 3gigabit Ethernet

Product OverviewAntaira Technologies’ LMP-2812G-4X8S-T is a 28-port industrial gigabit PoE+ managed Ethernet switch featuring 16*10/100/1000T (30W/port), 4*1G/2.5G/10G SFP+ and 8*100/1000 SFP Ports. This makes the product ideal for applications that demand high density of port connectivity, wide bandwidth and long-distance communication.LMP-2812G-4X8S-T is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMP-2812G-4X8S-T is designed with IP30 rated 1U 19” rackmount. Supporting the wide operating temperature model -40° to 75˚C also makes it the best solution for any harsh and extreme ambient weather environment applications, such as power/utility, transportation, water wastewater treatment plant, oil/gas, and security surveillance system industries.FeaturesSupport 16*10/100/1000BASE-T Gigabit IEEE 802af/at Compliant PoE Ports (30W/Port)Support 4*1G/2.5G/10G SFP+ Slots and 8*100/1000 SFP SlotsITU-T G.8032 Ethernet Ring Protection Switch (ERPS) ProtocolIEEE 802.1D STP (Spanning Tree Protocol), IEEE 802.1w RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s MSTP (Multiple Spanning Tree Protocol)Static Routes, ARPSNMPv1/v2c/v3, RMON, Modbus TCP, and HTTP/HTTPSRADIUS, TACACS+, 802.1X AuthenticationACL, IP Source GuardVLAN, QoS, and SNMPv3IP30 Rugged Metal Case DesignRedundant Power InputFanless OperationPower Reverse Polarity ProtectionHigh EFT and ESD ProtectionOperating Temperature: -40°C to 75°C5-Year WarrantyPackage Content1 x Quick Installation Guide1 x LMP-2812G-4X8S-T1 x Rack Mounting Brackets and Screws1 x RJ45 to DB9 Serial Console CableTechnical SpecificationsIEEE Standards: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3af/at Power over Ethernet, IEEE 802.3z Gigabit Fiber, IEEE 802.3ae 10 Gigabit Ethernet, IEEE 802.3x Flow Control for Full Duplex, IEEE 802.1d STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, IEEE 802.1Q VLAN, IEEE 802.1p QoS/CoS, IEEE 802.1X Network Authentication, IEEE 802.1AB LLDP, IEEE 802.3ad LACP, IEEE 802.1Q Bridge MIB 2008Processing Type: Store and ForwardProtocols: IGMP v1/v2/v3, SNMP v1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6Flow Control: IEEE 802.3x flow control, back pressure flow controlConfiguration: HTTP, HTTPS, Telnet, SSH, CLI, TFTP, SNMP v3VLAN Group: 4095 groupsIGMP Group: 1024Ethernet Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)MAC Table Size: 32KJumbo Frame: 10KbytesMemory Buffer: 32MbitsTransfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet Port, 14,880,000pps for 10 Gigabit Ethernet PortSwitching Architecture: Back-Plane (Switching Fabric): 128GbpsEthernet Port Count: 16 ports10/100/1000 BASE-T(X): 16 portsPoE Port: 16 ports (30W/port)PoE Pin Assignment: V-, V-, V+, V+, for pin 1, 2, 3, 6; V+, V+, V-, V-, for pin 4, 5, 7, 8 (Support Modes: Mode A, Mode B, 4-Pair Mode)Fiber Port Count: 12 ports100/1000 BASE-(F)X SFP: 8 ports1G/10G SFP+: 4 portsWavelength: Refers to SFP moduleLED Indicator: System: Power 1, Power 2, Master (M), Ring (R), Status, PoE Load (P/L); Ethernet ports: Speed/Link/Active; PoE: On-connected to PD devices; SFP: Link/ActiveHousing: Metal, IP30 protectionMounting: Rack MountDimensions (W × H × D): 440 x 44 x 215 mmWeight: Unit: 8.82 lb; Shipping: 11.02 lbPower Connection: 8-contact terminal blockInput Voltage: 48-55V DC, Redundant InputPower Redundancy: YesRelay Output: 24VDC, 1A resistiveSystem Power Consumption: 38.5 WattsMax. PoE Power Budget: 480WOverload Current Protection: PresentReverse Polarity Protection: PresentOperating Temperature: -40° to 75° C (-40° to 167° F)Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F)Ambient Relative Humidity: 5% to 95% non-condensingCertifications: FCC, CEEMI: FCC Part 15 Subpart B Class A, CE EN55032 Class A, EN61000-6-4 Class AEMS: CE EN 55035, EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field)Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC60068-2-27, Vibration: IEC60068-2-6MTBF: 166,201 hrsGreen: RoHS CompliantWarranty: 5 years
