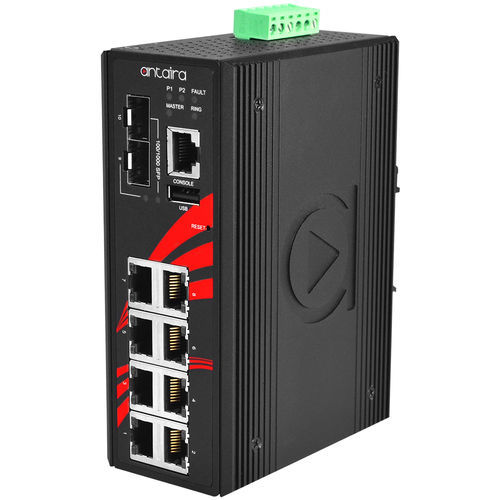

Managed switch LMP-1002G-SFP

10 portslayer 2gigabit Ethernet

Introduction
Antaira’s LMP-1002G-SFP is a 10-port industrial Gigabit PoE+ managed Ethernet switch embedded with 8*10/100/1000Tx Ethernet ports that support IEEE 802.3at/af for a maximum of 30W/port, and 2*100/1000 dual rate SFP slots for Gigabit fiber connections. It is a fully manageable Layer 2 Ethernet switch pre-loaded with a user-friendly web management console. It supports ring network redundancy using ITU-T G.8032 ERPS with <50ms network recovery time. Advanced network filtering and security functions include IGMP, VLAN, QoS, SNMP, port lock, RMON, ModbusTCP, and 802.1X/HTTPS/SSH/SSL for improved determinism and remote network management. The LMP-1002G-SFP is IP30 rated, DIN-rail mountable, and supports standard operating temperature range of -10°C to 70°C. It provides high EFT and ESD protection for industrial applications such as power/utility, water/wastewater, oil/gas/mining, factory automation, security surveillance, ITS, and other harsh environments.

Features

• Supports 8 x 10/100/1000Tx IEEE 802.3at/af (30W/port) and 2 x 100/1000 SFP slots
• Network redundancy: RSTP/MSTP and G.8032 ERPS (Recovery Time <50ms)
• Configuration: Web Console, Telnet, CLI
• IGMP v1/v2/v3 support, up to 1024 groups
• QoS (IEEE802.1p) and CoS/ToS
• IEEE802.1Q VLAN support, SNMP v1/v2c/v3
• PoE Ping Alarm function for PoE port power recycle
• System warning setting for automatic warning through E-Mail
• Redundant power input design: 48~55VDC
• Housing: Metal IP30 rated; DIN-rail and wall mount support
• Standard operating temperature: -10~70°C
• 5-year warranty

Package Content

• 1 x LMP-1002G-SFP
• 2 x Wall mounting brackets and screws
• 1 x RJ45 to DB9 serial console cable
• 1 x DC cable – 18 AWG & DC jack 5.5 x 2.1 mm

Optional Accessories

• CBF-LC01LC-MD — LC to LC 1 Meter Multi-Mode Duplex
• DIN-RACK-2U — Din-rail to 19" Rack Mount Adapter (2U)
• DRP-240-48 — 240 Watt Industrial Single Output DIN Rail Power Supply (48 VDC / 5.0 A)
• MDR-60-48 — 60 Watt Series / 48 VDC / 1.25 A Industrial Slim DIN Rail Power Supply
• PA-60-48-US — Power Adapter for LNP & IMP Series (Input 100-240VAC, Output 48VDC/1.25A)
• SFP-M — 1 Gigabit Fiber SFP Transceiver, Multi-Mode 550M / LC / 850nm
• SFP-S10 — 1 Gigabit Fiber SFP Transceiver, Single-Mode 10km / LC / 1310nm

Technology / Protocols

• IEEE Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x Flow Control, IEEE 802.3af/at PoE, IEEE 802.1d STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, ITU-T G.8032 ERPS, IEEE 802.1Q VLAN, IEEE 802.1x Authentication, IEEE 802.1p QoS
• Protocols: IGMP v1/v2/v3, SNMP v1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6

Performance & Architecture

• Processing Type: Store and Forward
• VLAN Groups: 1~4094 groups
• IGMP Groups: up to 1024
• Ethernet Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)
• MAC Table Size: 8K
• Jumbo Frame: 9.6 Kbytes
• Memory Buffer: 4 Mbits
• Transfer Rate: 14,880 pps (Ethernet), 148,800 pps (Fast Ethernet), 1,488,000 pps (Gigabit)
• Switching Fabric (Back-Plane): 20 Gbps

Interfaces

• Ethernet Ports: 8 x 10/100/1000 BASE-T(X)
• PoE Ports: 8 ports (30W/port)
• PoE Pin Assignment: V+, V+, V-, V- for pins 1,2,3,6 (End-span, Mode A)
• Fiber Ports: 2 x 100/1000 BASE-(F)X SFP (dual rate)

Mechanical

• Housing: Metal, IP30 protection
• Mounting: DIN-Rail (standard), Wall mount (optional)
• Dimensions (W × H × D): 54 × 142 × 99 mm
• Weight: Unit weight: 2.5 lbs; Shipping weight: 3.3 lbs

Power

• Power Connection: Removable 6-contact terminal block
• Input Voltage: 48V–55V DC, redundant input
• Power Redundancy: Yes
• Relay Output: 24V DC, 1A resistive
• System Power Consumption: 15 Watts
• Overload Current Protection: Present
• Reverse Polarity Protection: Present

Environmental Limits

• Operating Temperature: -10° to 70° C (14° to 158° F)
• Storage Temperature: -40° to 85° C (-40° to 185° F)
• Ambient Relative Humidity: 5% to 95% non-condensing

Regulatory & Reliability

• Certifications: FCC, CE
• Safety Approvals: UL 60950-1; UL 61010-1 / UL 61010-2-201; ISA 12.12.01 (UL C1D2); ATEX; NEMA TS2
• EMI: FCC Part 15 Subpart B Class A; CE EN 55032 Class A; EN 61000-6-4 Class A
• EMS: CE EN 55024; EN 61000-6-2; IEC61000-4-2 (ESD); IEC61000-4-3 (RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge); IEC61000-4-6 (CS); IEC61000-4-8 (Magnetic Field)
• Stability Testing: Free Fall IEC60068-2-32; Shock IEC60068-2-27; Vibration IEC60068-2-6
• Green: RoHS compliant
• Warranty: 5 years

Caractéristiques / Spécifications techniques

• Model: LMP-1002G-SFP
• Ports: 8 x Gigabit RJ45 (PoE+ 30W/port) + 2 x dual-rate SFP
• PoE Standard: IEEE 802.3at/af
• Switching Capacity: Back-plane 20 Gbps
• MAC Table: 8K
• Jumbo Frame: 9.6 KB
• Memory Buffer: 4 Mbits
• Input Voltage: 48–55V DC (redundant)
• Power Consumption: 15 W (system)
• Dimensions: 54 × 142 × 99 mm
• Operating Temp: -10° to 70° C
• Storage Temp: -40° to 85° C
• Weight: 2.5 lbs (unit)
• Ingress Protection: IP30
