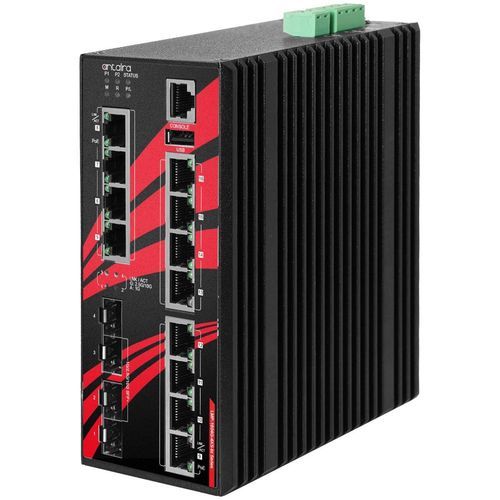

Managed ethernet switch LMP-1604G-4XS-bt-T

16 portslayer 3gigabit

Product Overview Antaira Technologies’ LMP-1604G-4XS-bt(-T) is a 16-port managed gigabit PoE++ Ethernet switch embedded with 12x 10/100/1000T Ethernet ports that support IEEE 802.3bt for a maximum of 90W/port, and 4x 1G/2.5G/10G SFP+ slots for fiber connection. It is a fully manageable light layer 3 Ethernet switch pre-loaded with a user-friendly web management console. It supports ring network redundancy using the open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol with <50ms network recovery time. Advanced network filtering and security functions such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. LMP-1604G-4XS-bt(-T) is IP30 rated and DIN-rail mountable. It supports extended operating temperature from -40°C to 75°C. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS, and other outdoor or harsh environments. Its compact form and front-facing connections make installation and maintenance easy in reserved spaces. Features - Support 12x 10/100/1000BASE-T Gigabit IEEE 802af/at/bt Compliant PoE++ Ports (90W/Port) - Support 4x 1G/2.5G/10G SFP+ Slots - ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) Protocol - IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP - Static Routes, ARP - SNMPv1/v2c/v3, RMON, Modbus TCP, and HTTP/HTTPS - RADIUS, TACACS+, 802.1X Authentication - ACL, IP Source Guard - VLAN, QoS, and SNMPv3 - IP30 Rugged Metal Case Design - Redundant Power Input - Fanless Operation - Power Reverse Polarity Protection - High EFT and ESD Protection - Operating Temperature: -40°C to 75°C - 5-Year Warranty Package Content - 1 x DC cable –18 AWG & DC jack 5.5x2.1mm - 1 x LMP-1604G-4XS-bt-T - 1 x Quick Installation Guide - 1 x Wall mounting brackets set with screws - 1 x RJ45 to DB9 Serial Console Cable Technical Specifications - IEEE Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3z Gigabit Fiber, IEEE 802.3ae 10Gigabit Fiber, IEEE 802.3af/at/bt PoE, IEEE 802.3x Flow Control, IEEE 802.3ad LACP, IEEE 802.1D/w/s STP/RSTP/MSTP, IEEE 802.1Q VLAN, IEEE 802.1X Authentication, IEEE 802.1p QoS/CoS, ITU-T G.8032 ERPS, IEEE 802.1AB LLDP - Processing Type: Store and Forward - Protocols: IGMP v1/v2/v3, SNMP v1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6 - Flow Control: IEEE 802.3x, back pressure - Configuration: HTTP, HTTPS, Telnet, SSH, CLI, TFTP, SNMP v3 - VLAN Groups: 4095 - IGMP Groups: 1024 - Ethernet Redundancy: STP/RSTP/MSTP, LACP, ERPS v1/v2 (<50ms) - MAC Table Size: 32K - Jumbo Frame: 9.6Kbytes - Memory Buffer: 32Mbits - Transfer Rate: 77.37 Mpps - Switching Architecture: 104Gbps - Ethernet Ports: 12x 10/100/1000 BASE-T(X), PoE++ (90W/port) - PoE Pin Assignment: V-, V-, V+, V+ (pins 1,2,3,6); V+, V+, V-, V- (pins 4,5,7,8); Modes: A, B, 4-Pair - Fiber Ports: 4x 1G/2.5G/10G SFP+ - LED Indicators: System: Power 1, Power 2, Master (M), Ring (R), Status, PoE Load (P/L); Ethernet: Speed/Link/Active; PoE: On-connected to PD devices; SFP: Link/Active - Housing: Metal, IP30 protection - Mounting: DIN-Rail, Wall mount (optional) - Dimensions: 72 x 160 x 130mm - Weight: Unit: 4.76lb; Shipping: 5.78lb - Power Connection: One removable 4-contact and one 2-contact terminal block - Input Voltage: 48-55V DC, Redundant Input - Power Redundancy: Yes - Relay Output: 24VDC, 1A resistive - System Power Consumption: 25W - Max. PoE Power Budget: 360W - Overload Current Protection: Present - Reverse Polarity Protection: Present - Operating Temperature: -40° to 75°C (-40° to 167°F) - Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) - Ambient Relative Humidity: 5% to 95% non-condensing - Certifications: FCC, CE - EMI: FCC Part 15 Subpart B Class A, CE EN55032 Class A, EN61000-6-4 Class A - EMS: CE EN 55035, EN 61000-6-2, IEC61000-4-2/3/4/5/6/8 - Stability Testing: Free Fall: IEC60068-2-32; Shock: IEC60068-2-27; Vibration: IEC60068-2-6 - MTBF: 258,072 hrs - Green: RoHS Compliant - Warranty: 5 years
