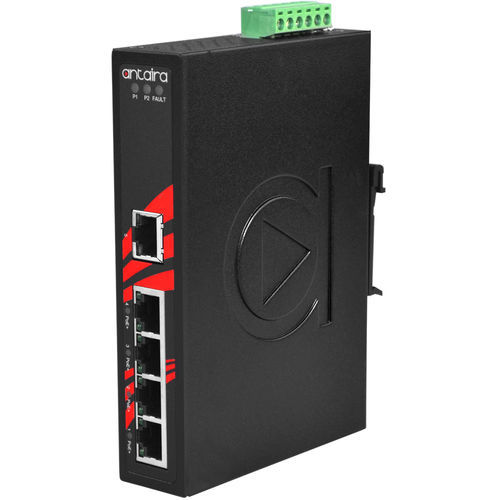

Unmanaged ethernet switch LNP-0500

smart5 portsfast ethernet

Product Overview Antaira’s LNP-0500 is a smart 5-port Industrial Unmanaged Ethernet Switch supporting IEEE-802.3at compliance (Power-over-Ethernet Plus) on ports 1 to 4. The switch is classified as power sourcing equipment (PSE), and when used in this way, LNP-0500 enables centralization of the power supply and provides up to 30 watts of power per port. LNP-0500 can be used to power IEEE 802.3af or 802.3at compliant power devices (PD), eliminating the need for additional wiring, and supports IEEE 802.3/802.3u/802.3x with 10/100BTx, full or half duplex, MDI/MDI-X auto sensing to provide an economical solution for the Industrial Ethernet Network. In addition, the Network Broadcast Storm Protection and built-in relay warning function alerts network engineers when power failures or port breaks occur. Features - Network broadcast storm protection - 4-Port IEEE 802.3at compliant PoE+ Function with 30W/Port - 1-Port 10/100Tx Fast Ethernet - Supports Auto MDI/MDI-X Function - Store-and-Forward Switching Architecture - 2K MAC Address Table - EFT Protection: 2,000 VDC support - ESD Protection: 6,000 VDC support - Redundant Power Input Design – 48~55VDC - Built-in 1 relay output for Port Break Alarm - IP30 Rugged Aluminum Case Design - DIN-Rail and Wall Mount support - Operating Temperature range - STD: -10° to 70° C, EOT: -40° to 75° C - 5-Year Warranty Package Content - LNP-0500 - Mounting Brackets Optional Accessories - DIN-RACK-2U: Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height Technical Specifications - IEEE Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3x Flow Control, IEEE 802.3af/at Power over Ethernet - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x flow control, back pressure flow control - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port - Switching Architecture: Back-Plane (Switching Fabric): 1.0Gbps; Packet Throughput Ability (Full-Duplex): 1.488Mpps @ 64bytes - Ethernet Port Count: 5 ports - 10/100 BASE-T(X): 5 ports - PoE Port: 4 ports (30W/port) - PoE Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) - Housing: Metal, IP30 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 30 × 142 × 99 mm - Weight: Unit weight: 1.1 lbs; Shipping weight: 1.45 lbs - Power Connection: Removable 4-contact terminal block - Input Voltage: 48V–55V DC, Redundant Input - Power Redundancy: Yes - Relay Output: 24V DC, 1A resistive - System Power Consumption: 10 Watts - Max. PoE Power Budget: 120 Watts - Overload Current Protection: Present - Reverse Polarity Protection: Present - Operating Temperature: -10° to 70° C (14° to 158° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing - Certifications: FCC, CE, UL 508, ISA 12.12.01 (UL C1D2) - EMI: FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A - EMS: CE EN 55024, EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC60068-2-27, Vibration: IEC60068-2-6 - Green: RoHs Compliant - Warranty: 5 years
