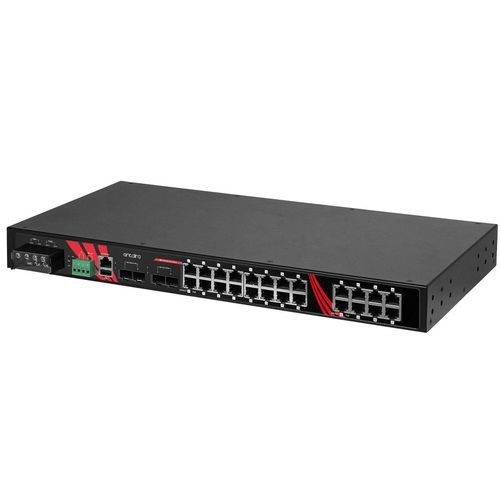

Managed ethernet switch LMP-2804G-4XS

28 portslayer 3gigabit Ethernet

Product Overview Antaira Technologies’ LMP-2804G-4XS is a 28-port industrial gigabit PoE+ managed Ethernet switch featuring 24*10/100/1000T Gigabit Ethernet with IEEE 802.3at compliant PoE (30W/port) and 4*1G/2.5G/10G SFP+ Slots. This product is ideal for applications requiring high port density, wide bandwidth, and long-distance communication. The LMP-2804G-4XS is a fully manageable Light Layer 3 Ethernet switch with a user-friendly web management console. It supports ring network redundancy using the open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol with <50ms network recovery time. Advanced network filtering and security functions such as IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL enhance determinism and improve network management for remote SCADA systems or control networks. Designed with an IP30 rated 1U 19” rackmount, the switch supports an operating temperature of -10° to 65˚C, making it suitable for harsh and extreme environments such as power/utility, transportation, water/wastewater treatment plants, oil/gas, and security surveillance system industries. Features - Support 24*10/100/1000BASE-T Gigabit IEEE 802af/at Compliant PoE Ports (30W/Port) - Support 4*1G/2.5G/10G SFP+ Slots - ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) Protocol - IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP - Static Routes, ARP - SNMPv1/v2c/v3, RMON, Modbus TCP, and HTTP/HTTPS - RADIUS, TACACS+, 802.1X Authentication - ACL, IP Source Guard - VLAN, QoS, and SNMPv3 - IP30 Rugged Metal Case Design - Redundant Power Input - Fanless Operation - Power Reverse Polarity Protection - High EFT and ESD Protection - Operating Temperature: -10°C to 65°C - 5-Year Warranty Package Content - 1 x Quick Installation Guide - 1 x LMP-2804G-4XS - 1 x Rack Mounting Brackets and Screws - 1 x RJ45 to DB9 Serial Console Cable Technical Specifications - IEEE Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3af/at PoE, IEEE 802.3z Gigabit Fiber, IEEE 802.3ae 10 Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.1d STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, IEEE 802.1Q VLAN, IEEE 802.1p QoS/CoS, IEEE 802.1X Authentication, IEEE 802.1AB LLDP, IEEE 802.3ad LACP, IEEE 802.1Q Bridge MIB 2008 - Processing Type: Store and Forward - Protocols: IGMP v1/v2/v3, SNMP v1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6 - Flow Control: IEEE 802.3x, back pressure - Configuration: HTTP, HTTPS, Telnet, SSH, CLI, TFTP, SNMP v3 - VLAN Groups: 4095 - IGMP Groups: 1024 - Ethernet Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms) - MAC Table Size: 32K - Jumbo Frame: 10Kbytes - Memory Buffer: 32Mbits - Transfer Rate: 14,880pps (Ethernet), 148,800pps (Fast Ethernet), 1,488,000pps (Gigabit Ethernet), 14,880,000pps (10 Gigabit Ethernet) - Switching Fabric: 128Gbps - Ethernet Ports: 24 x 10/100/1000 BASE-T(X), PoE (30W/port) - PoE Pin Assignment: V-, V-, V+, V+ (pins 1,2,3,6); V+, V+, V-, V- (pins 4,5,7,8); Modes: A, B, 4-Pair - Fiber Ports: 4 x 1G/10G SFP+ - LED Indicators: System: Power 1, Power 2, Master (M), Ring (R), Status, PoE Load (P/L); Ethernet: Speed/Link/Active; PoE: On-connected to PD devices; SFP: Link/Active - Housing: Metal, IP30 protection - Mounting: Rack Mount - Dimensions: 440 x 44 x 215 mm - Weight: Unit: 9.11 lb; Shipping: 11.18 lb - Power Connection: 8-contact terminal block - Input Voltage: 48-55V DC, Redundant Input - Power Redundancy: Yes - Relay Output: 24VDC, 1A resistive - System Power Consumption: 40.5 Watts - Max. PoE Power Budget: 720W - Overload Current Protection: Present - Reverse Polarity Protection: Present - Operating Temperature: -10° to 65° C (14° to 149° F) - Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) - Ambient Relative Humidity: 5% to 95% non-condensing - Certifications: FCC, CE - EMI: FCC Part 15 Subpart B Class A, CE EN55032 Class A, EN61000-6-4 Class A - EMS: CE EN 55035, EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC60068-2-27, Vibration: IEC60068-2-6 - MTBF: 142,643 hrs - Green: RoHS Compliant - Warranty: 5 years
