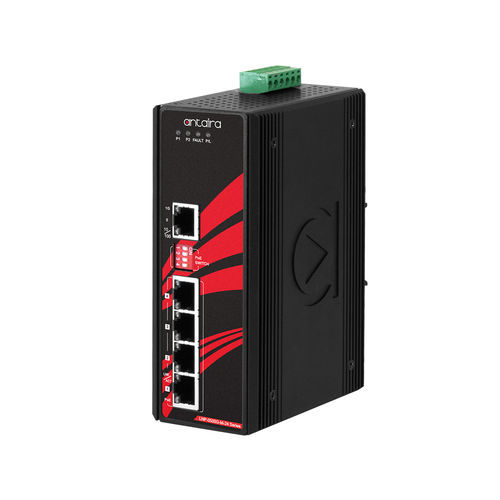

Unmanaged ethernet switch LNP-0500G-bt-24-T

5 portsgigabit Ethernetgigabit

Product Overview Antaira Technologies’ LNP-0500G-bt-24-T is an industrial gigabit PoE++ unmanaged Ethernet switch featuring 4*10/100/1000Tx Gigabit Ethernet ports that support IEEE802.3bt for a maximum of 90W/port and 1*10/100/1000Tx Ethernet port. It supports industrial extended temperatures range from -40°C to 75°C and low voltage power input from 12 to 55V DC. It is an ideal solution for rapid, unmanaged gigabit network expansion with PoE++ capabilities. LNP-0500G-bt-24-T is IP30 rated and DIN-rail mountable. It also provides Ethernet connectivity with PoE functions for outdoor or harsh industrial automation application environments, such as security surveillance, ITS-traffic monitoring systems, oil/gas and mining, facility management for power/utility, water wastewater treatment plants, and automated production lines in factory automation. Features - Supports 4*10/100/1000Tx IEEE 802.3bt Compliant with 90W/Port and 1*10/100/1000Tx Ethernet Port - Store-and-Forward Switching Architecture - 10Gbps Back-Plane (Switching Fabric) - 8K MAC Address Table - 10.0Kbytes Jumbo Frame Support - Redundant Power Input Design: 12~55VDC - Built-in 1 Relay Output for Power Failure Warning - IP30 Rugged Metal Case Design - DIN-Rail and Wall Mount Support Included - Operating Temperatures (EOT): -40°~75°C - 5-Year Warranty Package Content - 1 - LNP-0500G-bt-24-T - 1 - Quick Installation Guide - 2 - Wall mounting brackets and screws - 1 - DC cable –18 AWG & DC jack 5.5x2.1mm Optional Accessories - DIN-RACK-2U: Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height - SDR-240-48: 240 Watt Series / 48 VDC / 5.0 Amps Industrial Slim High-Efficiency Single Output DIN Rail Power Supply Technical Specifications - IEEE Standards: IEEE 802.3 10Tx Ethernet, IEEE 802.3u 100Tx Fast Ethernet, IEEE 802.3ab 1000Tx Gigabit Ethernet, IEEE 802.3at/af/bt Power over Ethernet - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x back pressure flow control - MAC Table Size: 8K - Jumbo Frame: 10K bytes - Memory Buffer: 1Mbit - Transfer Rate: 14,880pps for Ethernet port, 148,800pps for Fast Ethernet port, 1,488,000pps for Gigabit Ethernet port - Switching Architecture: Back-Plane (Switching Fabric): 10Gbps - Ethernet Port Count: 5 ports - 10/100/1000 BASE-T(X): 5 ports - PoE Port: 4 port (90W/port) - PoE Pin Assignment: V-, V-, V+, V+, for pin 1, 2, 3, 6; V+, V+, V-, V-, for pin 4, 5, 7, 8 - DIP Switch: Control PoE Function by Port - LED Indicator: System: Power 1, Power 2, Fault, PoE Load (P/L); Ethernet Ports: Speed/Link/Active; PoE: On-connected to PD device - Housing: Metal, IP30 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 54 × 142 × 99 mm - Weight: Unit weight: 1.85 lbs; Shipping weight: 2.51 lbs - Power Connection: Removable 6-contact terminal block - Input Voltage: 12V–55V DC, Redundant Input - Power Redundancy: Yes - Relay Output: 24V DC, 1A resistive - System Power Consumption: 5 Watts - Max. PoE Power Budget: Max. 90 Watts - Overload Current Protection: Present - Reverse Polarity Protection: Present - Operating Temperature: -40° to 75° C (-40° to 167° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing - Certifications: FCC, CE - UL 61010-1 / UL 61010-2-201: ✔ - EMI: FCC Part 15 Subpart B Class A, CE EN55032 Class A, EN61000-6-4 Class A - EMS: CE EN55035/EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6 - Green: RoHS Compliant - Warranty: 5 years
