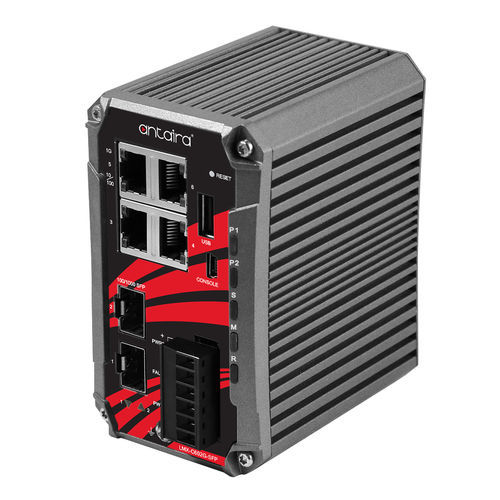

Managed ethernet switch LMX-C602G-SFP-T-V2

6 portslayer 3gigabit Ethernet

Product OverviewAntaira Technologies’ LMX-C602G-SFP-T-V2 is a 6-port industrial compact Gigabit managed Ethernet switch embedded with 4*10/100/1000Tx Ethernet ports and 2*100/1000Fx dual rate SFP slots for fiber connection. It is a fully manageable light layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks.The LMX-C602G-SFP-T-V2 is IP40 rated and DIN-rail mountable. It supports extended operating temperature from -40°C to 75°C. It also provides high EFT and ESD protection for industrial networking applications, such as power/utility, water wastewater, oil/gas/mining, factory automation, security surveillance, ITS and any other outdoor or harsh environment. With a compact form and all connections facing the front of the Ethernet switch making it easy viewing of installations in a reserved space.FeaturesSupports 4*10/100/1000Tx and 2*100/1000 SFP SlotsNetwork Redundancy Support: RSTP/MSTP, and G.8032 ERPS (Recovery Time <50ms)Configuration: Web Console, Telnet, CLI CommandSupports IGMP v1/v2/v3, up to 1024 GroupsSupports QoS (IEEE802.1p) and CoS/ToSSupports IEEE802.1Q VLAN, SNMP v1/v2cPower Input: 12~48VDC in 6-Pin Terminal BlockReverse Polarity ProtectionIP40 ProtectionDIN-Rail or Wall MountableOperating Temperature (EOT): -40°C to 75°C5-Year WarrantyPackage ContentLMX-C602G-SFP-T-V2Quick installation guideWall mounting bracket set with screwsDC cable- 18AWG & DC jack 5.5 x 2.1mmDust cover setMini-USB B type male to DB9 RS-232 female cableOptional AccessoriesCBF-LC01LC-MD: LC To LC 1 Meter Multi-Mode DuplexDIN-RACK-2U: Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U HeightSFP-M-T: 1 Gigabit Fiber SFP Transceiver, Multi Mode 550M / LC / 850nm, -40º~85ºCSFP-S10-T: 1 Gigabit Fiber SFP Transceiver, Single-Mode 10km / LC / 1310nm, -40º~85ºCCBF-ST01LC-MD: ST To LC 1 Meter Multi-Mode Duplex CableNDR-240-48: 240W Single Output Industrial Din-rail, 48VDC OutputTechnical SpecificationsTechnologyIEEE Standards: IEEE 802.3 10Tx Ethernet, IEEE 802.3u 100Tx Fast Ethernet, IEEE 802.3ab 1000Tx Gigabit Ethernet, IEEE 802.3z 1000Base-X Gigabit Fiber, IEEE 802.3x Flow Control, IEEE 802.1d STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, ITU-T G.8032 / Y.1344 ERPS v1/v2, IEEE 802.1Q VLAN, IEEE 802.1p QoS/CoS, IEEE 802.1X Network Authentication, IEEE 802.1AB LLDP, IEEE 802.3ad LACPProcessing Type: Store and ForwardProtocol: IPv4/IPv6, IGMP v1/v2/v3, SNMP v1/v2c/v3, LLDP, LLDP-MED, HTTP, HTTPS, SSHv2 telnet, DHCP client, DHCPv6 client, DHCP server, Port Mirror, DNS client/proxy, IP based Access Filter, ICMPv6, syslog, Time Zone /Daylight Saving, NTP client, RMON, sFlow, Loop detection, Console Port, USB configuration backup/restore, Power lost warning, relay triggerFlow Control: IEEE 802.3x back pressure flow controlSoftwareConfiguration: Http, Https, Telnet, SSH, CLI, TFTP, SNMP v3VLAN Group: 4095 groupsIGMP Group: 1024 groupsEthernet Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms)PerformanceMAC Table Size: 8KJumbo Frame: 9.6 KbytesMemory Buffer: 4 MbitsTransfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet PortSwitching Architecture: Back-Plane (Switching Fabric): 12GbpsEthernet InterfaceEthernet Port Count: 4 ports10/100/1000 BASE-T(X): 4 portsPoE Port: 4 ports (90W/port)PoE Pin Assignment: V-, V-, V+, V+, for pin 1, 2, 3, 6; V+, V+, V-, V-, for pin 4, 5, 7, 8Fiber InterfaceFiber Port Count: 2 ports100/1000 BASE-(F)X SFP: 2 portsWavelength: Refers to SFP moduleOther InterfaceDIP Switch: Control PoE Function by PortLED Indicator: System: Power 1, Power 2, Master(M), Ring(R), and Status(S); Ethernet Ports: Speed/Link/Active; SFP Port: Link/ActiveMechanical CharacteristicsHousing: Metal, IP40 protectionMounting: DIN-Rail mount, Wall mount (Optional)Dimensions (W × H × D): 64.9 x 110 x 89.8 mmWeight: Unit weight: 1.94 lbs; Shipping weight: 2.59 lbsPower RequirementsPower Connection: Removable 6-contact terminal blockInput Voltage: 12V–48V DC, Redundant InputPower Redundancy: YesRelay Output: 24V DC, 1A resistiveSystem Power Consumption: 10.8 WattsOverload Current Protection: PresentReverse Polarity Protection: PresentEnvironmental LimitsOperating Temperature: -40° to 75° C (-40° to 167° F)Storage Temperature: -40° to 85° C (-40° to 185° F)Ambient Relative Humidity: 5% to 95% non-condensingRegulatory ApprovalsCertifications: FCC, CEUL 61010-1 / UL 61010-2-201: ✔EMI: FCC Part 15 Subpart B Class A, CE EN55032 Class A, EN61000-6-4 Class AEMS: CE EN55035/EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field)Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6MTBF: 767,393 hrsGreen: RoHS CompliantWarranty: 5 years
