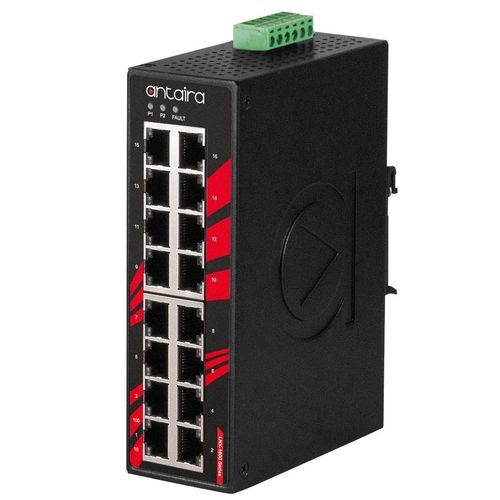

Unmanaged ethernet switch LNX-1600-E

16 portsfast ethernetDIN rail

Product Overview Antaira Technologies’ LNX-1600-E is an industrial unmanaged Ethernet switch designed with 16*10/100 fast Ethernet ports. It is IP30 rated and DIN-Rail mountable, making it ideal for applications that demand high bandwidth and long-distance communication, such as power/utility, water/wastewater treatment plants, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems. The LNX-1600-E has a hardened design providing high EFT and ESD protection to prevent any unregulated voltage. It also has a dual power input support of 12~48VDC. It supports standard operating temperature from -10˚ to 65˚C environment. Features - E-Mark certified for vehicle applications - Supports 16*10/100Tx Fast Ethernet - Store and Forward Switching Architecture - Redundant Power Input Design: 12~48VDC - IP30 Rugged Metal Case Design - DIN-Rail and Wall Mount Support Included - Operating Temperature Range: -10°C to 65°C (STD) - 5-Year Warranty Package Content - LNX-1600-E - Quick Installation Guide - Wall mounting bracket set with screws - Dust cover set Technical Specifications Technology - IEEE Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x flow control, back pressure flow control Performance - MAC Table Size: 16K - Jumbo Frame: 1,664 bytes - Memory Buffer: 4 Mbits - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port - Switching Architecture: Back-Plane (Switching Fabric): 3.2Gbps Ethernet Interface - Ethernet Port Count: 16 ports - 10/100 BASE-T(X): 16 ports Other Interface - LED Indicator: System: Power 1, Power 2, Fault; Ethernet Ports: On-Link/Flashing-data transmitting Mechanical Characteristics - Housing: Metal, IP30 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 46 × 142 × 99 mm - Weight: Unit weight: 1.38 lbs; Shipping weight: 1.79 lbs Power Requirements - Power Connection: Removable 6-contact terminal block - Input Voltage: 12V–48V DC, Redundant Input - Power Redundancy: Yes - Relay Output: 24V DC, 1A resistive - System Power Consumption: 3.4 Watts - Overload Current Protection: Present - Reverse Polarity Protection: Present Environmental Limits - Operating Temperature: -10° to 65° C (14° to 149° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing Regulatory Approvals - Certifications: FCC, CE, E-Mark (E13) - UL 61010-1 / UL 61010-2-201: Pending - EMI: FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A - EMS: CE EN 55035, EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC60068-2-27, Vibration: IEC60068-2-6 - Green: RoHS Compliant - Warranty: 5 years
