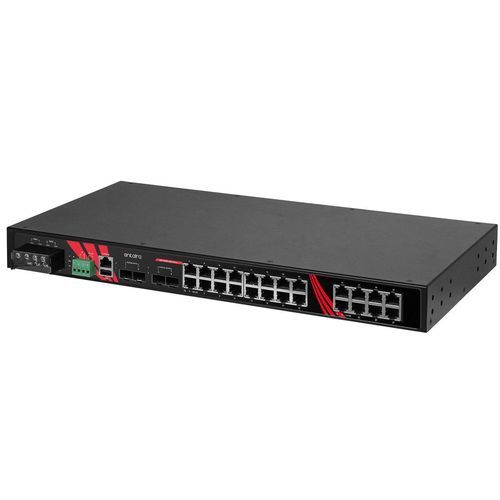

Managed ethernet switch LMX-2804G-4XS-T

28 portslayer 3gigabit Ethernet

Product Overview Antaira Technologies’ LMX-2804G-4XS-T is a 28-port industrial gigabit managed Ethernet switch featuring 24*10/100/1000Tx Ethernet ports and 4*1G/2.5G/10G SFP+ Slots. This makes the product ideal for applications that demand high density of port connectivity, wide bandwidth, and long-distance communication. LMX-2804G-4XS-T is a fully manageable Light Layer 3 Ethernet switch that is pre-loaded with a user-friendly web management console design. It supports the ring network redundancy function using the market’s open standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network management for remote SCADA systems or control networks. The LMX-2804G-4XS-T is designed with IP30 rated 1U 19” rackmount. Supporting the wide operating temperature model -40° to 75˚C also makes it the best solution for any harsh and extreme ambient weather environment applications, such as power/utility, transportation, water wastewater treatment plant, oil/gas, and security surveillance system industries. Features - Support 24*10/100/1000BASE-T Gigabit Ethernet Ports - Support 4*1G/2.5G/10G SFP+ Slots - ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) Protocol - IEEE 802.1D STP (Spanning Tree Protocol), IEEE 802.1w RSTP (Rapid Spanning Tree Protocol), IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) - Static Routes, ARP - SNMPv1/v2c/v3, RMON, Modbus TCP, and HTTP/HTTPS - RADIUS, TACACS+, 802.1X Authentication - ACL, IP Source Guard - VLAN, QoS, and SNMPv3 - IP30 Rugged Metal Case Design - Redundant Power Input - Fanless Operation - Power Reverse Polarity Protection - High EFT and ESD Protection - Operating Temperature: -40°C to 75°C - 5-Year Warranty Package Content - 1 x Quick Installation Guide - 1 x LMX-2804G-4XS-T - 1 x Rack Mounting Brackets and Screws - 1 x RJ45 to DB9 Serial Console Cable Technical Specifications Technology - IEEE Standards: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Fiber, IEEE 802.3ae 10 Gigabit Ethernet, IEEE 802.3x Flow Control for Full Duplex, IEEE 802.1d STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP, IEEE 802.1Q VLAN, IEEE 802.1p QoS/CoS, IEEE 802.1X Network Authentication, IEEE 802.1AB LLDP, IEEE 802.3ad LACP, IEEE 802.1Q Bridge MIB 2008 - Processing Type: Store and Forward - Protocol: IGMP v1/v2/v3, SNMP v1/v2c/v3, TFTP, SNTP, SMTP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH/SSL, Modbus/TCP, LLDP, IPv4/IPv6 - Flow Control: IEEE 802.3x flow control, back pressure flow control Software - Configuration: HTTP, HTTPS, Telnet, SSH, CLI, TFTP, SNMP v3 - VLAN Group: 4095 groups - IGMP Group: 1024 - Ethernet Redundancy: STP/RSTP/MSTP, port trunk with LACP, ERPS v1/v2 (<50ms) Performance - MAC Table Size: 32K - Jumbo Frame: 10Kbytes - Memory Buffer: 32Mbits - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet Port, 14,880,000pps for 10 Gigabit Ethernet Port - Switching Architecture: Back-Plane (Switching Fabric): 128Gbps Ethernet Interface - Ethernet Port Count: 24 ports - 10/100/1000 BASE-T(X): 24 ports Fiber Interface - Fiber Port Count: 4 ports - 1G/10G SFP+: 4 ports - Wavelength: Refers to SFP module Other Interface - LED Indicator: System: Power 1, Power 2, Master (M), Ring (R), Status; Ethernet ports: Speed/Link/Active; SFP: Link/Active Mechanical Characteristics - Housing: Metal, IP30 protection - Mounting: Rack Mount - Dimensions (W × H × D): 440 x 44 x 215 mm - Weight: Unit: 6.83 lb; Shipping: 8.95 lb Power Requirements - Power Connection: 8-contact terminal block - Input Voltage: 12-48V DC, Redundant Input - Power Redundancy: Yes - Relay Output: 24VDC, 1A resistive - System Power Consumption: 40.5 Watts - Overload Current Protection: Present - Reverse Polarity Protection: Present Environmental Limits - Operating Temperature: -40° to 75° C (-40° to 167° F) - Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) - Ambient Relative Humidity: 5% to 95% non-condensing Regulatory Approvals - Certifications: FCC, CE - EMI: FCC Part 15 Subpart B Class A, CE EN55032 Class A, EN61000-6-4 Class A - EMS: CE EN 55035, EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC60068-2-27, Vibration: IEC60068-2-6 - MTBF: 176,591 hrs - Green: RoHS Compliant - Warranty: 5 years
