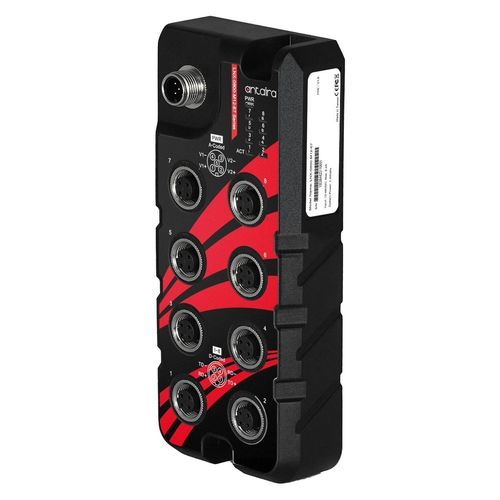

Unmanaged ethernet switch LNX-0800-M12-67

8 portsfast ethernetDIN rail

Product Overview The LNX-0800-M12-67 Series is an 8-port Industrial M12 Unmanaged Ethernet Switch embedded with 8*10/100BASE-TX Ethernet ports. Its IP67-rated plastic case and M12 connectors ensure a tight, robust connection and guarantee reliable operation in applications subject to high vibration and shock, in environments containing dust, liquid, or gas. This series offers two versions: one with standard operating temperature (-10°C to 65°C) and one with extended operating temperature (-40°C to 75°C). Features - Supports 8*10/100BASE-TX Fast Ethernet - Supports M12 (5-Pin A-coded Male) Power Connector - Supports M12 (4-Pin D-coded Female) Connector - IP67 Rugged Plastic Case Design - Redundant Power Input - DIN-Rail or Wall Mountable - Operating Temperature Range – STD: -10° to 65°C - 5-Year Warranty Package Content - 1 x Quick Installation Guide - 1 x LNX-0800-M12-67 - 1 x DIN-Rail kit with screws - 9 x M12 protective caps Technical Specifications Technology - IEEE Standards: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x flow control, back pressure flow control Performance - MAC Table Size: 1K - Jumbo Frame: 1,536 bytes - Memory Buffer: 448 kbits - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port - Switching Architecture: Back-Plane (Switching Fabric): 1.6Gbps Ethernet Interface - Ethernet Port Count: 8 ports - 10/100 BASE-T(X): 8 ports - M12 Connector: 4-pin D-Coded female connector Other Interface - LED Indicator: System: Power; Ethernet Ports: On-Link/Flash-data transmitting Mechanical Characteristics - Housing: Plastic, IP67 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 66 x 152 x 27.5 mm - Weight: Unit: 0.77 lb; Shipping: 1.03 lb Power Requirements - Power Connection: M12, 5-pin A-Coded male connector - Input Voltage: 12V–48V DC, Redundant Input - Power Redundancy: Yes - System Power Consumption: 1.4 Watts - Overload Current Protection: Present - Reverse Polarity Protection: Present Environmental Limits - Operating Temperature: -10° to 65° C (14° to 149° F) - Storage Temperature: -40°C ~ 85°C (-40°F ~ 185°F) - Ambient Relative Humidity: 5% to 95% non-condensing Regulatory Approvals - Certifications: FCC, CE - Railway: EN50121-3-2, EN50121-4 - UL 61010-1 / UL 61010-2-201: ✔ - EMI: FCC Part 15 Subpart B Class A, CE EN55032 Class A, EN61000-6-4 Class A - EMS: CE EN 55035, EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC60068-2-27, Vibration: IEC60068-2-6 - MTBF: 243,867 hrs - Green: RoHS Compliant - Warranty: 5 years
