Introduction

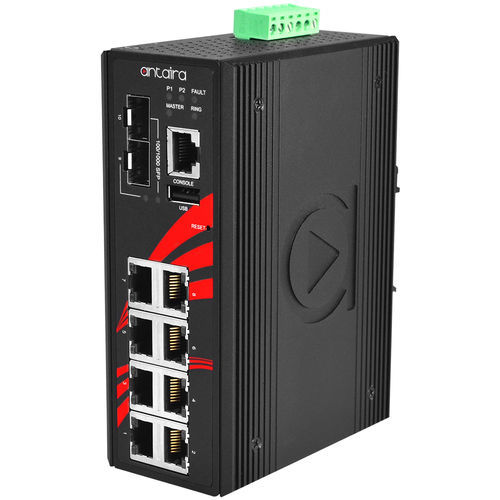

Antaira LMP-1002G-SFP-24-T is a 10-port industrial Gigabit PoE+ managed Ethernet switch with 8 x 10/100/1000Tx ports (IEEE 802.3at/af, up to 30W per port) and 2 x 100/1000 dual-rate SFP slots for Gigabit fiber. Fully manageable Layer 2 switch with user-friendly web management console. Supports ring network redundancy via ITU-T G.8032 ERPS with <50 ms recovery. Advanced network filtering and security functions include IGMP, VLAN, QoS, SNMP, port lock, RMON, Modbus TCP, 802.1X, HTTPS, SSH and SSL. IP30 rated metal housing, DIN-rail mountable. Dual power input 12–55 VDC with built-in voltage booster to provide full 48 VDC PoE for low-voltage power environments. High EFT and ESD protection for harsh industrial applications such as power/utility, water/wastewater, oil/gas/mining, factory automation, security surveillance and intelligent transportation systems.

Features

• Supports 8 x 10/100/1000Tx IEEE 802.3at/af (30W/port) and 2 x 100/1000 SFP slots
• Network redundancy: RSTP/MSTP and G.8032 ERPS (recovery time <50 ms)
• Configuration: Web console, Telnet, CLI
• IGMP v1/v2/v3 support, up to 1024 groups
• QoS support (IEEE 802.1p) and CoS/ToS
• IEEE 802.1Q VLAN support; SNMP v1/v2c/v3
• PoE Ping Alarm function for PoE port power recycle
• System warning settings for automatic alerts via e-mail
• Redundant power input design: 12–55 VDC with built-in voltage booster
• Housing: Metal, IP30 rated; DIN-rail and wall mount support
• Operating temperature: -40°C to 75°C
• 5-year warranty

Package Content

• 1 x LMP-1002G-SFP-24-T
• 2 x Wall mounting brackets and screws
• 1 x RJ45 to DB9 serial console cable
• 1 x DC cable – 18 AWG and DC jack 5.5 x 2.1 mm

Optional Accessories

• CBF-LC01LC-MD — LC to LC 1 meter multimode duplex
• DIN-RACK-2U — DIN-rail to 19" rack mount adapter, 2U height
• MDR-60-24 — 60 W / 24 VDC / 2.50 A industrial slim single output DIN-rail power supply
• SFP-M-T — 1 Gbps multimode SFP transceiver, 550 m / LC / 850 nm, -40°C to 85°C
• SFP-S10-T — 1 Gbps single-mode SFP transceiver, 10 km / LC / 1310 nm, -40°C to 85°C

Technical specifications

• IEEE standards: IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX; IEEE 802.3ab 1000Base-T; IEEE 802.3z 1000Base-X; IEEE 802.3x flow control; IEEE 802.3af/at PoE; IEEE 802.1d STP; IEEE 802.1w RSTP; IEEE 802.1s MSTP; ITU-T G.8032 ERPS; IEEE 802.1Q VLAN; IEEE 802.1X authentication; IEEE 802.1p QoS
• Processing type: Store-and-forward
• Protocol support: IGMP v1/v2/v3; SNMP v1/v2c/v3; TFTP; SNTP; SMTP; RMON; HTTP/HTTPS; Telnet; Syslog; DHCP Option 66/67/82; SSH/SSL; Modbus/TCP; LLDP; IPv4/IPv6
• MAC table size: 8K
• Jumbo frame: 9.6 Kbytes
• Memory buffer: 4 Mbits
• Transfer rate: 14,880 pps (Ethernet), 148,800 pps (Fast Ethernet), 1,488,000 pps (Gigabit)
• Switching architecture: Back-plane (switching fabric) 20 Gbps
• Ethernet interface: 8 x 10/100/1000Base-T(X) ports; PoE ports: 8 ports at 30W/port
• PoE pin assignment: V+, V+, V-, V- on pins 1,2,3,6 (End-span, Mode A)
• Fiber interface: 2 x 100/1000Base-(F)X SFP ports (dual-rate SFP)
• Housing: Metal, IP30 protection
• Mounting: DIN-rail (standard), wall mount (optional)
• Dimensions (W x H x D): 54 x 142 x 99 mm
• Weight: Unit weight 2.5 lbs; Shipping weight 3.3 lbs
• Power connection: Removable 6-contact terminal block
• Input voltage: 12–55 V DC, redundant input; built-in voltage booster for full 48 VDC PoE from low-voltage sources
• Power redundancy: Yes
• Relay output: 24 V DC, 1 A resistive
• System power consumption: 15 Watts (standby/system)
• Overload current protection: Present
• Reverse polarity protection: Present
• Environmental limits: Operating temperature -40°C to 75°C; Storage temperature -40°C to 85°C; Ambient relative humidity 5% to 95% non-condensing
• Regulatory approvals and certifications: FCC, CE; UL 60950-1; UL 61010-1 / UL 61010-2-201; ISA 12.12.01 (UL C1D2); ATEX; NEMA TS2
• EMI: FCC Part 15 Subpart B Class A; CE EN 55032 Class A; EN 61000-6-4 Class A
• EMS: CE EN 55024; EN 61000-6-2; IEC61000-4-2 (ESD); IEC61000-4-3 (RS); IEC61000-4-4 (EFT); IEC61000-4-5 (Surge); IEC61000-4-6 (CS); IEC61000-4-8 (Magnetic Field)
• Stability testing: Free Fall IEC60068-2-32; Shock IEC60068-2-27; Vibration IEC60068-2-6
• Green: RoHS compliant
• Warranty: 5 years
