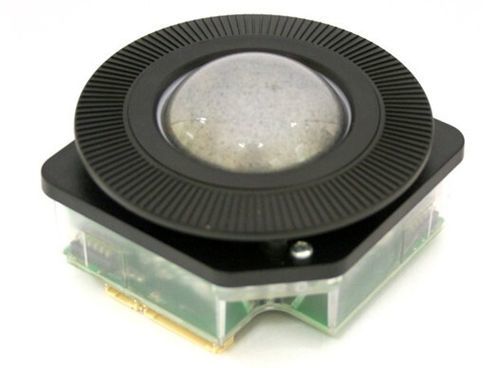

Optical trackball L50-70024- 0

panel-mount2 inch (50 mm)waterproof

Product Details The L50 Series Trackerball™ uses advanced infra-red optical tracking with solid-state sensing for contact-less, accurate cursor control across all speeds. Available with multiple electrical outputs and variable friction sealing options up to IP68. The removable top plate and ball allow wash down, decontamination and sterilisation, making the unit suitable for harsh environments. Designed for back-of-panel mounting in OEM keyboards and consoles where regular cleaning and servicing are required.

Features

• Solid-state sensing technology – infra-red optical tracking engine
• Sealing up to IP68
• Electrical outputs: USB & PS/2 (auto-select), SUN Systems, Quadrature, Combined Interface
• Removable top plate and ball for wash down and sterilisation
• Smooth operation in rugged environments
• Variable friction control providing sealing and tracking force options
• Custom connector options available
• Optional self-draining and back-flushing
• Available in various ball colours
• VX3™ integrated zoom for scroll-wheel functionality

Typical Applications

• Medical systems
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions

Product configuration / Ordering code Ordering code shown on page: L50-7 X 0 2 X X

Technical specifications

• Series: L50 Series Trackerball™
• Tracking technology: Infra-red optical, solid-state sensing (no moving parts except the ball)
• Sealing: up to IP68 (configuration page indicates IP65 option shown)
• Electrical outputs: USB & PS/2 (auto-select), SUN Systems, Quadrature, Combined Interface (PS/2 & USB)
• Mounting style: designed for back-of-panel mounting
• Top & body options: variable friction seal, removable ball; option with drain hole
• Integrated switches: configurable (example option shown: no switches)
• Ball colours: Black, Metallic Grey, Metallic Red (Ruby), Metallic Yellow, Metallic White
• Key features: removable top plate and ball for wash down, decontamination and sterilisation; variable friction control; optional self-draining/back-flushing
• Additional options: VX3™ integrated zoom (scroll wheel functionality); custom connector options
