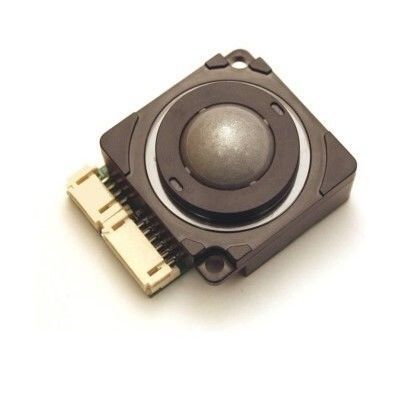

Laser trackball X19-760210- K

panel-mount19 mmwaterproof

Product overview
The X19 contact-less trackball uses a Generation II laser tracking engine to provide accurate cursor control across speeds. Designed for OEM integration, it features removable top ring access for cleaning and sterilisation, multiple electrical outputs and sealing up to IP68, making it suitable for demanding industrial environments. The unit is configured for back-of-panel mounting on keyboards and consoles.

Key features

• Laser tracking engine (Generation II) — solid-state sensing, no moving sensing parts
• Contact-less Trackerball™ design
• Sealing up to IP68
• Output: USB & PS/2 (auto-select) or Quadrature (depending on configuration)
• Removable top ring for cleaning, decontamination and maintenance
• Various top-plate and ball options; colours include Black and Metallic Grey
• VX3™ integrated zoom feature for scroll/zoom functionality
• Custom connector and integrated switch options; external switch connections (USB/PS2 only)

Typical applications

• Medical systems and devices
• Marine and naval control panels
• Industrial consoles and HMI units
• Custom keyboard and OEM input solutions
• Environments requiring high sealing and easy maintenance

Configuration & ordering
Ordering code: X19 plus variant fields for Sealing Rating, Output Protocol, Integrated Switches, Mounting Style, Top & Body Style, Ball Colour and Suffix. Default/available options include Sealing: IP68; Output: Combined USB & PS/2 or Quadrature; Mounting: back-of-panel; Top/body styles: X19 Damper Ring, X19 Rubber Ball Seal; Ball colours: Black, Metallic Grey; Suffix example: K = Optical Tracking Engine.

Technical specifications

• Series / Model: X19
• Tracking technology: Laser tracking engine (Generation II)
• Tracker type: Contact-less Trackerball™
• Sealing: up to IP68
• Output / Interface: USB & PS/2 (auto-select) or Quadrature
• Scroll/zoom: VX3™ integrated zoom feature
• Mounting: Back-of-panel mounting for OEM keyboards/consoles
• Top/body options: Removable top ring; X19 Damper Ring; X19 Rubber Ball Seal
• Integrated switches: Configurable; external switch connections (USB/PS2 only)
• Ball colours: Black, Metallic Grey (other configurable colours possible)
• Customization: Multiple top plates, connector options, tracking force and sealing configurations available
