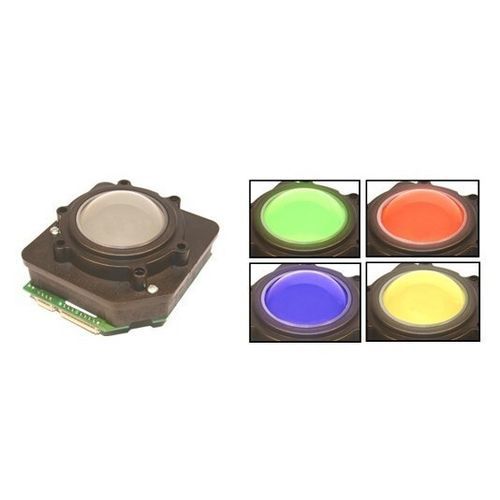

Mechanical trackball P50-16023- T

panel-mount2 inch (50 mm)plastic

Product overview
The P50 RGB mechanical trackball is a panel-mounted module for OEM keyboards and control consoles, offering independent control of integrated RGB LEDs to adjust ball illumination colour and intensity. It is available with multiple electrical outputs and sealing options up to IP65. Constructed with high-grade stainless steel and engineered plastics, the P50 uses floating sealing technology for reliable long-term operation and delivers smooth, precise cursor control in low-light and rugged environments.

Features

• Sealing options up to IP65 (BS EN 60529)
• Output protocols: USB & PS/2 (combined interface available)
• RGB LED-illuminated ball with independent colour and intensity control
• Smooth mechanical operation suitable for harsh environments
• Multiple top-plate configurations for sealing and tracking-force choices
• High-grade stainless steel shaft and bearings
• Custom connector and interface options
• Integrated VX3™ zoom feature for scroll-wheel functionality

Typical Applications

• Control systems
• Medical systems
• Marine systems
• Navigation systems
• Sound and lighting desks
• Industrial consoles
• OEM custom solutions

Technical specifications

• Model family: P50
• Backlit RGB ball with independent colour and intensity control
• Sealing rating options: IP40, IP51, IP65
• Output protocol options: Combined Interface - PS/2 & USB (other outputs available)
• Integrated switches: option for no switches (other switch counts available)
• Mounting style: panel/back-panel mount
• Top & body style options: P50 Sealed, P50 Non-Sealed
• Ball colour example: Translucent
• Materials: high-grade stainless steel and engineered plastics
• Floating sealing technology for enhanced environmental protection
• Custom connector options available
• Integrated VX3™ zoom feature (scroll-wheel functionality)
