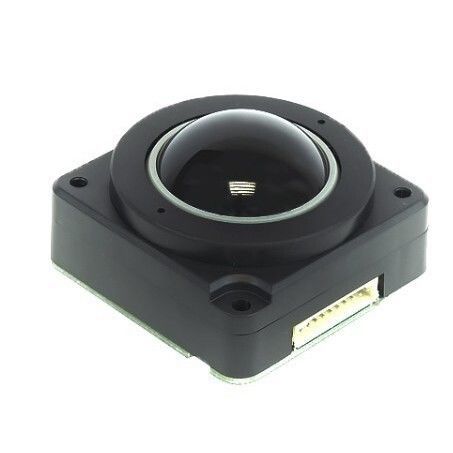

Mechanical trackball P38-A602J0

panel-mount38 mmprecision

Product overview
The P38 Ultra Compact is a professional trackball designed for back-of-panel mounting in OEM keyboards and industrial consoles. High-grade stainless steel shafts and bearings provide precise pointer control. Optional patented PTFE floating seal allows adjustment of ball tracking force and sealed/non-sealed variants are available.

Features

• Small package / compact footprint for space-constrained installations
• Outputs: USB & PS/2 (auto-select combined interface)
• Smooth operation in rugged environments
• High-grade stainless steel shaft and bearings
• Multiple configurations and finish options
• Backlit ball options
• Custom connector and external switch connection options (USB & PS/2 only)
• Optional integrated switches

Typical Applications

• Control systems
• Medical systems
• Navigation systems
• Compact and embedded keyboards
• Industrial operator consoles
• OEM custom solutions

Product configuration / Ordering options

• Base ordering code: P38
• Sealing rating: IP50 (default)
• Output protocol: Combined interface - PS/2 & USB (auto-select)
• Integrated switches: None by default (optional)
• Mounting style: Back-of-panel mount for OEM integration
• Top & body style options: P38UC Black Non-sealed; P38UC Black PTFE Ball Seal; P38UC RAL9002 Non-sealed; P38UC RAL9002 PTFE Ball Seal
• Ball colour options: Black; Yellow; White (RAL 9002); Metallic Grey
• Suffix: Standard (no suffix)

Technical specifications

• Series: P38 Ultra Compact
• High-grade stainless steel shafts and bearings for precise pointer control
• Optional patented floating PTFE seal to adjust ball tracking force
• Outputs: USB and PS/2 (auto-select combined interface)
• External switch connections supported (USB & PS/2 only)
• Mounting: Designed for back-of-panel mounting for OEM keyboards and consoles
• Available finishes: Black and RAL9002 (sealed and non-sealed variants)
• Ball colours: Black, Yellow, White (RAL 9002), Metallic Grey
• Compact footprint suitable for space-constrained installations
• Typical applications: control, medical, navigation, compact keyboards and industrial consoles
