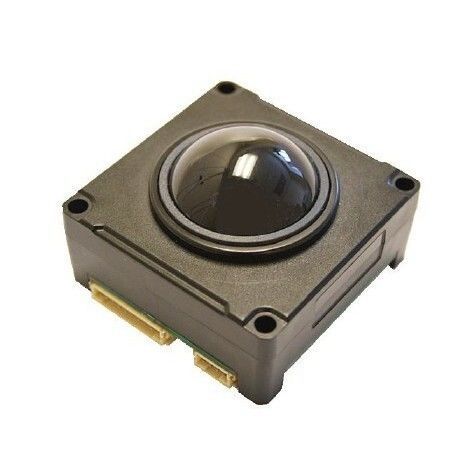

Panel-mount trackball P38-1602B- 0

38 mmprecisionvandal-proof

Product overview
The P38 Compact series are professional-grade trackballs engineered for demanding industrial and OEM environments. Designed for back-of-panel mounting in keyboards and consoles, the units combine a stainless steel shaft and bearings with a patented floating seal to limit ingress of liquids and particulates while maintaining precise pointer control.

Key features

• Sealing options up to IP65 (BS EN 60529) depending on configuration
• Outputs: PS/2 & USB (auto-select) and TTL Quadrature
• High-grade stainless steel shaft and bearings for durability and precision
• Patented floating seal technology to reduce ingress of aqueous solutions and particulates
• Multiple top plate and chassis configurations for varied sealing, tracking force and bezel diameters
• Backlit ball options and various ball colours
• Custom connector options and external switch connections (USB & PS/2 only)
• Optional anti-vandal kit

Applications

• Industrial control systems and HMIs
• Medical systems and diagnostic consoles
• Navigation and avionics panels
• Compact and rugged keyboards
• Industrial consoles and operator stations
• OEM custom solutions requiring sealed pointing devices

Configuration & ordering
Ordering code example: P38 - X X 0 2 X - 0. Configurable options allow specification for sealing, interface, switches and mechanical style.

• Sealing Rating: IP40, IP51, IP65
• Output Protocol: Combined Interface - PS/2 & USB (auto-select); Quadrature (TTL)
• Integrated Switches: option for No switches (default shown)
• Mounting Style: back-of-panel mount (typical)
• Top & Body Style: P38C Sealed; P38C Non-Sealed
• Ball Colour: Black (additional colours may be available)

Technical specifications

• Series: P38 Compact
• Sealing: up to IP65 (BS EN 60529) depending on configuration
• Outputs: PS/2 & USB (auto-select) and TTL Quadrature
• Shaft & bearings: high-grade stainless steel
• Seal technology: patented floating seal to limit ingress of liquids and particulates
• Mounting: designed for back-of-panel mounting in OEM keyboards and consoles
• Options: top plate/chassis configurations, bezel diameters, backlighting, custom connectors, anti-vandal kit, external switch connections (USB & PS/2)
