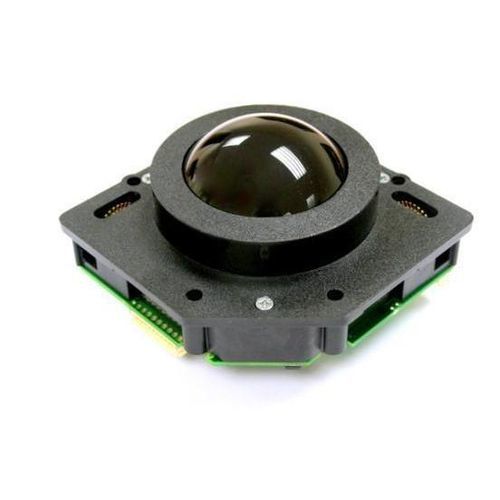

Mechanical trackball P60-160240

panel-mount60 mmprecision

Product overview
The P60 Series mechanical trackballs are designed for demanding industrial and OEM applications where precise pointing and durable mechanics are required. Based on proven Cursor Controls Ltd technology, the P60 offers high ball exposure for enhanced operator control and high-grade stainless steel shafts and bearings for accurate, long-lasting pointer movement. The unit is intended for back-of-panel mounting in OEM keyboards and consoles.

Features

• Sealing options up to IP51 (BS EN 60529)
• Output: USB & PS/2 (auto-select) or SUN Systems
• High mass ball for precise control
• Smooth operation in rugged environments
• High grade stainless steel shafts and bearings
• Various top plate configurations for sealing and tracking force options
• Custom connector options
• Custom ball colours

Typical applications

• Control systems
• Navigation systems
• Sound and lighting desks
• Industrial consoles
• OEM custom solutions available

Product configuration

• Ordering code begins with P60 to select required configuration
• Sealing rating: IP40 or IP51
• Output protocol: PS/2 & USB (combined auto-select), SUN Systems, or combined USB/PS/2 & SUN
• Integrated switches: none by default (option for integrated switches available)
• Mounting style: back-of-panel mount (other options available)
• Top & body style: P60 non-sealed (series-specific configuration options available)
• Ball colour options: Black, Yellow, White (RAL 9002), Red, Blue
• Suffix: Standard (no suffix)

Technical specifications

• Series: P60 Series mechanical trackball
• Sealing: up to IP51 (per IEC/BS EN 60529)
• Interface/Output: USB & PS/2 (auto-select) or SUN Systems
• Ball: high mass ball for precise control
• Mechanics: high grade stainless steel shafts and bearings for solid, precise pointer control
• Design: high ball exposure for improved user control; designed for back-of-panel mounting in OEM keyboards and consoles
• Top plate: various configurations to provide sealing and different tracking force options
• Customization: custom connector options and custom ball colours available
