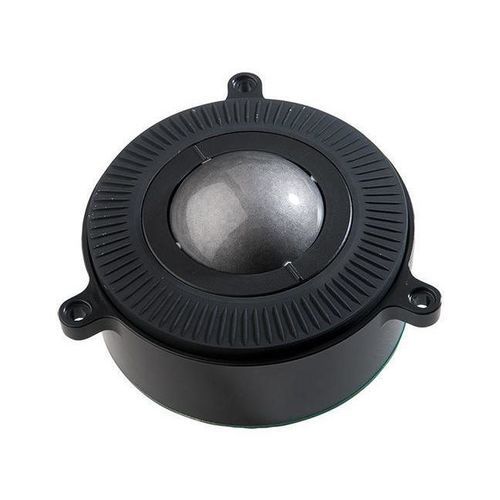

Optical trackball Z50-100210- G

panel-mount2 inch (50 mm)precision

Product Description
The Z50 Series optical trackball is a contact-less, high-performance cursor control device using Generation II infrared optical tracking. It provides precise X/Y cursor movement plus a surrounding Z-axis control wheel for scroll and zoom functions. The removable top ring allows easy cleaning, decontamination and sterilisation for continued operation in demanding environments. Designed for back-of-panel mounting in OEM keyboards and consoles, the Z50 supports multiple electrical outputs and tracking force options.

Features

• Solid-state sensing technology – infrared optical tracking engine (Generation II)
• Z-axis control wheel for scroll/zoom capability
• Outputs: USB & PS/2 (auto-select)
• Smooth operation in rugged environments
• Various top plate configurations available
• Custom connector options available
• Various ball colours available

Typical Applications

• Sound and lighting desks
• Video editing consoles
• Medical systems
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions

Product Configuration / Options (overview)

• Sealing Rating: IP40
• Output Protocol: Quadrature; Combined Interface - PS/2 & USB
• Integrated Switches: No switches (option selections available)
• Mounting Style: Mount to back of panel
• Top & Body Style options:
  • Z50 Damper Ring, Smooth Z-Axis Ring
  • Z50 Rubber Ball Seal, Smooth Z-Axis Ring
  • Z50 PTFE Ball Seal, Smooth Z-Axis Ring
• Ball Colour options: Black; Metallic Grey
• Suffix / Tracking Engine: Optical Tracking Engine (Gen II)

Technical specifications

• Optical tracking: Infrared optical, solid-state sensing (Generation II)
• Contact-less operation (no moving sensing parts other than ball)
• Cursor control: X and Y axes plus Z-axis control wheel (scroll/zoom)
• Electrical outputs: USB & PS/2 (auto-select) and Quadrature/combined interface options
• Designed for rugged environments and smooth operation
• Removable top ring for cleaning, decontamination and sterilisation
• Back-of-panel mounting suitable for OEM keyboards and consoles
• Available top plate/body styles, sealing options and ball colours
• Custom connector options and OEM/custom solutions supported
