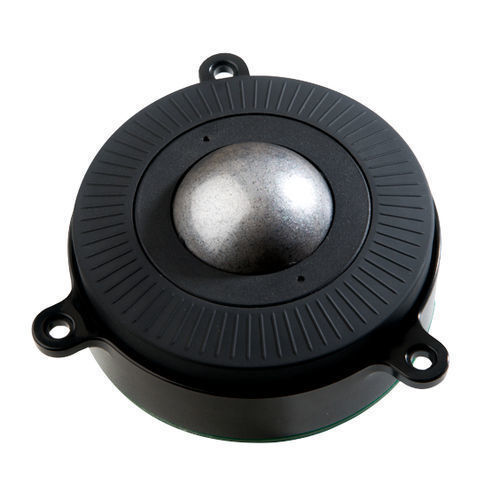

Optical trackball Z38-160210- G

panel-mount38 mmprecision

Product overview
The Z38 series is a contact-less optical trackball using advanced infrared/laser tracking. It provides conventional X and Y cursor control plus a surrounding Z‑axis control wheel for scroll and zoom functions. The solid‑state tracking engine delivers accurate motion on virtually any ball while minimising moving parts. The unit is designed for back-of-panel OEM integration and includes a removable top ring for easy cleaning, decontamination and sterilisation.

Features

• Infrared/laser solid‑state tracking engine
• Z‑axis control wheel for scroll/zoom
• Output options: USB/PS2 (auto-select) or TTL Quadrature
• Removable top ring for maintenance and sterilisation
• Various top plate and connector configurations
• Multiple ball colours and tracking force options

Typical Applications

• Sound and lighting control desks
• Video editing and broadcast consoles
• Medical and laboratory systems
• Marine and navigation consoles
• Custom and OEM keyboard integrations
• Industrial control panels and consoles

Specifications

• Series / model: Z38
• Tracking technology: Infrared optical / solid‑state laser engine (Gen II example)
• Cursor axes: X and Y conventional motion
• Z‑axis: Surrounding control wheel for scroll/zoom (smooth or detent options)
• Outputs: USB/PS2 (auto‑select) and TTL Quadrature
• Sealing options: IP40 (example; other options available)
• Integrated switches: Configurable (option for no switches)
• Mounting: Back‑of‑panel OEM mounting
• Top & body options: Damper ring, rubber or PTFE ball seals; smooth or detent Z‑axis rings
• Ball colours: Black, Metallic Grey (additional colours may be available)
• Design: Removable top ring for cleaning, decontamination and sterilisation
• Environment: Engineered for reliable operation in rugged conditions
• Customisation: Top plate, tracking force and connector options available
