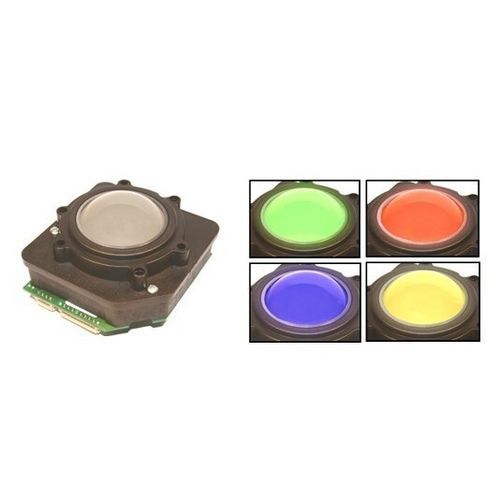

Mechanical trackball P50-16023- B

panel-mount2 inch (50 mm)plastic

Product Overview
The P50 Series backlit mechanical trackballs are modules offering multiple backlit ball colours, electrical outputs and sealing options up to IP65. They provide smooth, precise cursor control for control panels and OEM keyboards in low-light and industrial environments. Constructed with stainless steel shaft and bearings and engineered plastic components and using floating sealing technology, the P50 is designed for reliable long-term operation in industrial, medical and console applications.

Features

• Sealing up to IP65 (BS EN 60529)
• Electrical outputs: PS/2, USB (combined interface available)
• Backlit translucent ball in various colours (blue, red, white, yellow)
• Smooth operation in rugged environments
• Multiple top-plate configurations for sealing and tracking force options
• Stainless steel shaft and bearing materials
• Custom connector and switch options
• VX3™ integrated zoom for scroll-wheel functionality

Typical Applications

• Industrial control systems and consoles
• Medical equipment interfaces
• Marine and navigation systems
• Sound and lighting desks
• OEM keyboards and custom console solutions

Product Configuration
Ordering code example: P50 - X 6 0 2 X X

• Sealing rating: IP40; IP51; IP65
• Output protocol: PS/2, USB (combined interface available)
• Integrated switches: configurable (e.g., no switches)
• Mounting style: back-of-panel mount for OEM installation
• Top & body style: sealed and non-sealed options
• Ball colour: backlit translucent options (blue, red, white, yellow)

Technical Specifications

• Series / Model: P50 (Backlit variant)
• Sealing: up to IP65 (per BS EN 60529)
• Electrical outputs: PS/2 and USB (combined interface available)
• Ball: backlit, translucent colours
• Materials: stainless steel (shaft and bearings) and engineered plastics
• Mounting: back-of-panel for OEM keyboards and consoles
• Switch options: configurable
• Additional feature: VX3™ integrated zoom for scroll-wheel functionality
