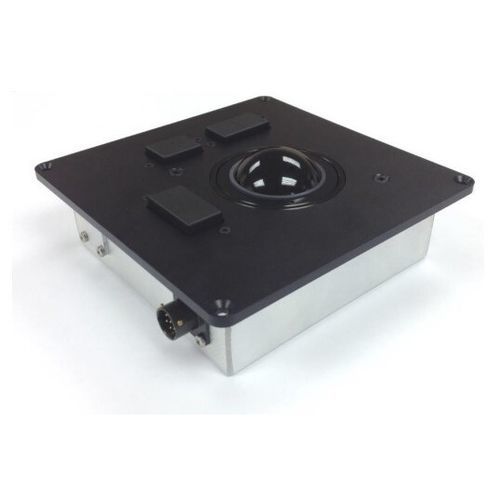

Optical trackball F50-503130- AR

panel-mount2 inch (50 mm)plastic

Product Description
The F50 Series trackball module is a high specification human interface device designed to operate in extremely demanding environments where reliability and robustness are essential. The module is supplied with three integrated switches providing conventional left, middle and right button functionality; switch number and position can be customised if required. The aluminium construction offers high impact strength, electrical shielding and enhanced environmental protection. High-grade stainless steel shafts and bearings ensure precise pointer control. The module incorporates Cursor Controls Ltd patent-protected anti-vibration technology to reject unintended ball motion from shocks and vibration. Configurable top-plate styles allow selection of ball tracking force and optional illumination for low-light environments. The unit is intended for front-of-panel mounting as part of rugged keyboards or consoles.

Features

• Electrical outputs: USB, PS/2 or TTL Quadrature
• Three integrated switches providing left, middle and right button functions (configurable)
• Smooth, precise operation in rugged environments
• Environmental protection:
  • IPX5 sealing rating
  • Sand and dust resistance
  • High corrosion resistance
  • High impact strength
• Cursor Controls Ltd patent-protected anti-vibration technology to prevent unwanted cursor movement from external shock/vibration
• Various top-plate configurations:
  • Non-removable ring/ball
  • Removable ring/ball options for serviceability including:
    • Quick-release bayonet locking ring (PC/ABS)
    • Threaded locking ring (PC/ABS or aluminium)
• Manufactured to ISO 9001 quality system
• Configurable options available via product selector document DS50073

Typical Applications
Designed for integration into rugged, marine and aerospace keyboards and consoles where reliable cursor control is required under shock, vibration and harsh environmental conditions.

Technical specifications

• Model: F50 Series trackball module
• Electrical outputs supported: USB, PS/2, TTL Quadrature
• Integrated switches: Three (left, middle, right) — number and position configurable
• Materials: Aluminium body; high-grade stainless steel shafts and bearings
• Environmental protection: IPX5 sealing rating; sand and dust protection; high corrosion resistance; high impact strength
• Anti-vibration: Cursor Controls Ltd patent-protected anti-vibration technology to reject unintended ball movement from shocks/vibration
• Top & body styles: Non-removable ball; removable ball retention ring options (PC/ABS bayonet, PC/ABS threaded, aluminium threaded)
• Mounting: Front-of-panel mounting for integration into rugged keyboards/consoles
• Standards: Manufactured to ISO 9001 quality system
