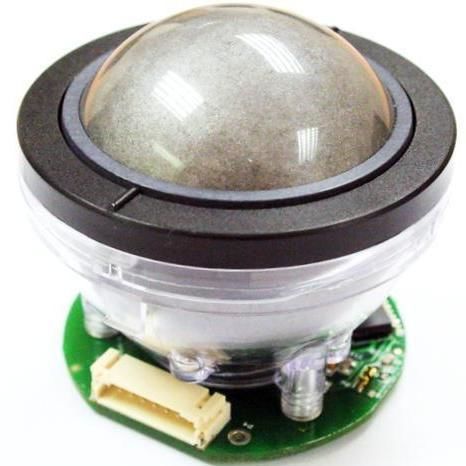

Optical trackball X50-860110- G

panel-mount2 inch (50 mm)precision

Product Description
Utilizing the latest infra-red optical tracking technology, the X50 Series top-mount optical trackball is a high-spec, contact-less cursor control device designed for demanding industrial and embedded applications. The unit mounts from the top side of a keyboard or panel without fixings, reducing integration costs and installation time. The optical tracking engine delivers precise cursor movement across speeds, combining solid-state sensing with the proven performance of the Cursor Controls range. The removable top ring allows easy cleaning, decontamination and sterilisation to maintain performance in harsh environments. The X50 Series is offered with multiple electrical outputs and tracking force options.

Features

• Solid-state infra-red optical tracking engine
• Top-mount installation (no panel cut-through required)
• Removable top ring and ball for maintenance and decontamination
• Sealing up to IP68 (variant dependent)
• Output: Combo USB & PS/2 (auto-select) or TTL Quadrature
• Smooth operation in rugged environments
• Various top plate configurations and ball colours
• Custom connector options
• VX3™ integrated zoom feature for scroll-wheel functionality
• External switch connections available (USB/PS2 only)

Typical Applications

• Medical systems
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions

Technical specifications

• Series / Model: X50
• Sealing Rating: Customer Defined / Skeletal (series supports up to IP68)
• Output Protocol: Combined Interface - PS/2 & USB (auto-select) or TTL Quadrature
• Integrated Switches: No integrated switches (external switch connections available for USB/PS2)
• Mounting Style: Top-mount (example: mounting to front of panel)
• Top & Body Style options: X50 Damper Ring (removable ball retention ring with ribs); X50 PTFE Ball Seal (removable ball retention ring with ribs)
• Ball colours available: Black; Metallic Grey (additional colours possible)
• Tracking engine option: Optical Tracking Engine (Gen II)
• Ordering: configure series key "X50" with variant fields for sealing rating, output protocol, integrated switches, mounting style, top/body style, ball colour and suffix
