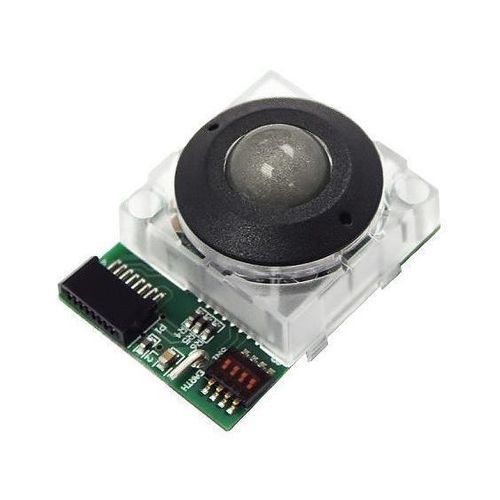

Laser trackball X13-76021D- K

panel-mount13 mmwaterproof

Product description
The X13 series laser Trackball™ is a compact, solid-state sensing trackball designed for back-of-panel mounting in OEM keyboards and consoles. It uses a laser tracking engine with no moving parts except the ball to deliver accurate cursor control across a wide range of speeds, suitable where a small-ball solution is required.

Features

• Solid-state sensing technology — laser tracking engine
• Sealing up to IP68
• Outputs: USB & PS/2 (auto-select), SUN Systems, or TTL Quadrature
• Smooth operation in rugged environments
• Various top plate configurations (damper ring or rubber ball seal)
• Custom connector options and OEM configurability
• External switch connections supported (USB/PS/2 only)

Typical Applications

• Medical systems
• Marine and nautical systems
• Custom keyboard applications
• Industrial consoles and control panels
• OEM custom solutions

Product Configuration (options)

• Sealing Rating: IP68 (option)
• Output Protocol: Combined Interface — PS/2 & USB (auto-select) or TTL Quadrature
• Integrated Switches: None (option)
• Mounting Style: Back-of-panel mount for OEM installation
• Top & Body Style: X13 Damper Ring or X13 Rubber Ball Seal
• Ball Colour: Metallic Grey or Black
• Suffix: K — Optical Tracking Engine

Technical specifications

• Model: X13
• Tracking: Laser, solid-state sensing engine
• Moving parts: Ball only (sensor is solid-state)
• Ingress protection: up to IP68
• Interfaces / Outputs: USB & PS/2 (auto-select); SUN Systems; TTL Quadrature
• External switch connections supported (USB/PS/2 only)
• Mounting: designed for back-of-panel installation in OEM keyboards and consoles
• Top plate / body options: damper ring, rubber ball seal, and other configurations
• Ball colours available: Metallic Grey, Black
• Suitable for: medical, marine, industrial, custom keyboard and OEM console applications
• Customization: custom connector options and OEM solutions available
