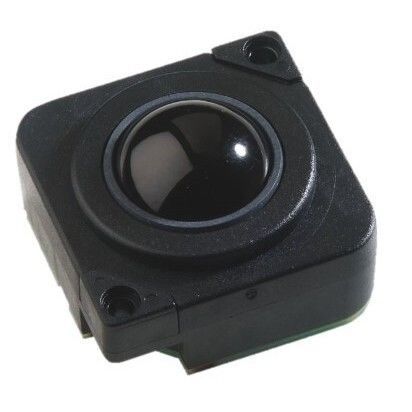

Mechanical trackball P25-1602A0panel-mount1 inch (25 mm)precision
Add to favorites
Compare this product
Characteristics
- Technology
- mechanical
- Mounting
- panel-mount
- Ball diameter
- 1 inch (25 mm)
- Other characteristics
- USB, rugged, PS2, stainless steel, IP65, vandal-proof, precision
- Applications
- industrial, medical, for Radar or Control Platform
Description
Product Overview
The P25 Compact trackball series provides a compact, panel-mounted pointing device designed for OEM keyboards and industrial consoles where space is limited. It uses stainless-steel shafts and bearings for precise pointer control and patented floating-seal technology to reduce ingress of liquids and particulates. Available sealed to IP65 depending on configuration.
Features
Typical Applications
Product Configuration
Technical Specifications
The P25 Compact trackball series provides a compact, panel-mounted pointing device designed for OEM keyboards and industrial consoles where space is limited. It uses stainless-steel shafts and bearings for precise pointer control and patented floating-seal technology to reduce ingress of liquids and particulates. Available sealed to IP65 depending on configuration.
Features
- Sealing options up to IP65 (BS EN 60529)
- Output interfaces: PS/2, USB, SUN or TTL Quadrature
- Steel-core tracking ball for accurate control
- Smooth operation in rugged environments
- Stainless-steel shaft and bearings
- Multiple top-plate configurations for sealing and tracking-force options
- Custom connector options and optional anti-vandal kit
- External switch connections available (USB & PS/2 only)
Typical Applications
- Control systems and industrial consoles
- Medical and navigation systems
- Compact and embedded keyboards
- Laptops, palmtops and portable OEM devices
- Custom OEM solutions
Product Configuration
- Sealing rating: IP40 or IP65 (configuration dependent)
- Output protocol: Combined interface (PS/2 & USB), SUN systems, or TTL Quadrature
- Integrated switches: none by default (other options available)
- Mounting style: back-of-panel (default)
- Top & body styles: P25C Sealed or P25C Non-Sealed
- Ball colour: Black (default)
- Suffix: Standard (no suffix)
Technical Specifications
- Series / Model: P25 Compact
- Sealing: up to IP65 (BS EN 60529) depending on configuration
- Outputs / Interfaces: PS/2, USB, SUN, TTL Quadrature (selection dependent)
- Ball: Steel-core ball for precise tracking
- Materials: Stainless-steel shafts and bearings
- Mounting: Designed for back-of-panel mounting in OEM keyboards and consoles
- Top-plate options: multiple configurations for sealing and tracking force
- Optional accessories: Anti-vandal kit, custom connectors
- Default integrated switches: None (external switch connections with USB & PS/2)
- Default ball colour: Black
