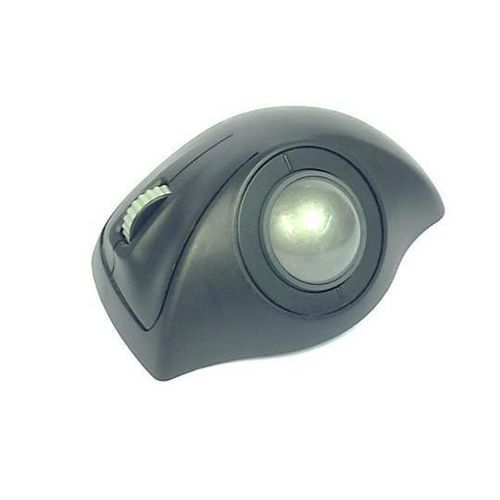

Optical trackball E38-76A11- 0

panel-mount38 mmwaterproof

Product overview
The E38 Series keyboard mount trackball module is an IP65-capable trackball module designed for integration into keyboard assemblies. It combines infra-red optical trackball navigation with an integrated hall-effect scroll wheel and provides left, middle and right switch functionality to deliver a complete human interface solution for cursor control.

Standard configuration
The standard E38 keyboard mount trackball is supplied with a black, fine-textured housing, USB and PS/2 auto-select output, and a grey scroll wheel. The solid-state design enables washdown, decontamination and sterilisation for use in demanding environments.

Features

• Environmental sealing to IP65 when mounted into an IP65 keyboard assembly
• Infra-red optical navigation technology
• Integrated IP65 hall-effect scroll wheel technology
• Integrated left, middle and right switch functionality
• 38 mm ball for precise cursor control
• USB & PS/2 outputs (auto-select)
• Smooth operation in rugged environments
• Various custom options available

Typical applications

• Medical systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions
• Factory automation applications

Product configuration / ordering
Panel-mounted module intended to be mounted using the mounting and cut-out detail shown in the product datasheet. Example ordering code shown on the product page: E38-7 6 A 1 X X. Configurable options on the product page include sealing rating, output protocol, integrated switches, mounting style, top & body style and ball colour.

Technical specifications

• Model: E38
• Sealing: IP65 when mounted into an IP65 keyboard assembly
• Navigation: Infra-red optical trackball technology
• Scroll: Integrated IP65 hall-effect scroll wheel
• Switches: Integrated left, middle and right switch functionality (standard configuration: 2 switches + scroll wheel)
• Ball diameter: 38 mm
• Electrical outputs: USB & PS/2 (auto-select)
• Housing: Black, fine-textured (standard)
• Scroll wheel colour: Grey (standard)
• Mounting: Designed for panel mounting; see product datasheet for mounting and cut-out details
• Durability: Solid-state design allows washdown, decontamination and sterilisation
• Customisation: Various electrical outputs, tracking force options, colours and backlighting options available
