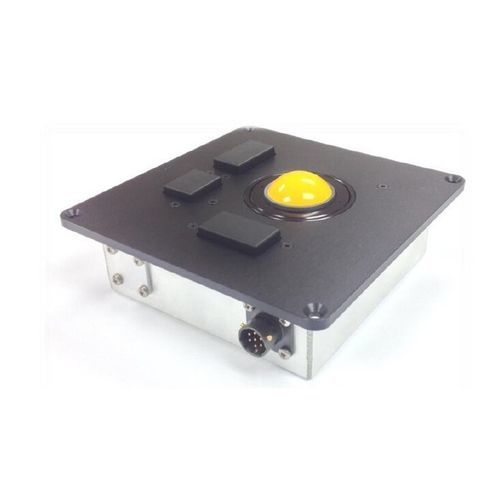

Mechanical trackball F38-503130- A

panel-mount38 mmwaterproof

Overview
The F38 Series trackball module is a human interface device engineered for extremely demanding environments where reliable pointer control and environmental protection are required. The module is supplied with three integrated switches providing left, middle and right button functions; switch count and positions can be adapted for custom solutions. The aluminium construction delivers impact strength, electrical shielding and environmental protection, while stainless steel shafts and bearings provide precise, durable pointer control. A patent‑protected anti‑vibration technology suppresses unintended cursor movement caused by external shock or vibration. Various top plate styles allow different tracking forces and optional illumination for low‑light operation. The module is designed for front‑of‑panel mounting in rugged keyboards or consoles.

Features

• Electrical outputs: USB, PS/2 and TTL Quadrature
• Three integrated switches (left, middle, right) — configurable in custom solutions
• Designed for smooth operation in rugged environments
• High level of environmental protection
• Sealing rating: IPX5
• Sand and dust protection
• High corrosion resistance
• High impact strength due to aluminium construction
• Patented anti‑vibration technology to suppress unintended cursor movement from shocks/vibration
• Multiple top plate configurations available to adjust tracking force and illumination
• Removable ring/ball options for ease of servicing
  • Quick‑release bayonet locking ring (PC/ABS)
  • Threaded removable locking ring (PC/ABS or aluminium)
• Non‑removable ring/ball variants available
• Suitable for military, marine and aerospace keyboards and consoles
• Manufactured under ISO 9001 quality system
• Additional top plate and body configurations may be available

Typical Applications

• Military, marine and aerospace keyboards and consoles

Technical specifications

• Model: F38 Module
• Manufacturer / Brand: Cursor Controls Ltd
• Electrical outputs supported: USB, PS/2, TTL Quadrature
• Integrated switches: three (left, middle, right) — configurable as part of custom solutions
• Sealing rating: IPX5
• Construction: aluminium housing for impact strength, electrical shielding and environmental protection
• Shafts & bearings: high‑grade stainless steel for precise pointer control
• Anti‑vibration: patent‑protected anti‑vibration technology to suppress unintended cursor movement from shocks/vibration
• Top & body options: multiple top plate and body styles including PC/ABS removable bayonet ring, PC/ABS removable threaded ring, non‑removable ball, aluminium removable threaded ring
• Ball colour options shown: Black, Yellow (additional colours may be available)
• Mounting style: designed for front‑of‑panel mounting
• Suffix / tracking engine option shown: Mechanical Tracking Engine
• Designed for rugged and demanding environments (military, marine, aerospace)
• Quality system: manufactured to ISO 9001
