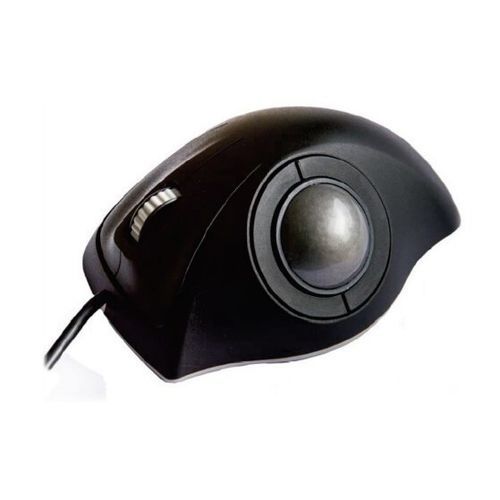

Optical trackball E38-76A31D

desktop38 mmwaterproof

Product overview
The E38 Series desktop trackball module incorporates Cursor Controls Ltd IP65 technology to provide a waterproof, solid-state human interface suitable for demanding environments. The module combines patented infra-red optical trackball navigation with an IP65-rated hall-effect scroll wheel and integrated left, middle and right switch functionality. Standard configuration includes a black fine-textured housing, aluminium base plate, wired USB cable (auto-select USB/PS-2) and a grey scroll wheel. The design allows washdown, decontamination and sterilisation while remaining a freestanding desktop device that optimises desk space compared with a mouse.

Features

• Environmental sealing to IP65
• Infra-red optical navigation technology
• Integrated IP65 hall-effect scroll wheel
• Integrated left, middle and right switch functionality
• 38 mm ball for precise cursor control
• USB & PS/2 outputs (auto-select)
• Wired USB cable for reliable connection (no batteries)
• Smooth operation in rugged environments
• Various custom options available

Typical Applications

• Medical systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions

Technical specifications

• Model: E38
• Sealing rating: IP65
• Output protocol: Combined interface - PS/2 & USB (auto-select)
• Integrated switches: 2 switches + scroll wheel (left, middle, right functionality)
• Mounting style: Desktop (freestanding)
• Top & body style options: E38 Damper Ring; E38 PTFE Ball Seal
• Ball colours: Metallic Grey; Metallic Red (Ruby)
• Ball diameter: 38 mm
• Housing: Black, fine-textured
• Base plate: Aluminium
• Scroll wheel: IP65 rated hall-effect, grey
• Electrical outputs: USB and PS/2
• Cable: Wired USB (no batteries required)
• Design: Solid-state; washable, decontaminable and sterilizable for demanding environments
• Ordering code prefix: E38
