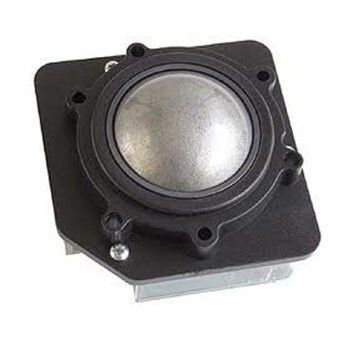

Optical trackball L50-70020- 0

panel-mount2 inch (50 mm)waterproof

Product overview
Utilizing infra-red optical tracking technology, the L50 Series Trackball is a contact-less cursor-control device designed for demanding OEM and industrial applications. The infra-red optical tracking engine delivers accurate cursor motion across speed ranges while using solid-state sensing (no moving sensing parts except the ball). Units are offered with multiple electrical outputs, configurable tracking force and sealing up to IP68, and are designed for back-of-panel mounting in keyboards and consoles.

Features

• Solid-state sensing technology — infra-red optical tracking engine
• Sealing up to IP68
• Outputs: USB & PS/2 (auto-select); Quadrature option available
• Smooth operation in rugged environments
• Various top-plate configurations to adjust sealing and tracking force
• Custom connector options
• Self-draining and back-flushing features (optional)
• Various ball colours
• VX3™ — integrated zoom feature for scroll-wheel functionality

Typical Applications

• Medical systems
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions

Product configuration / Ordering code
The product ordering code shown is L50-7 X 0 2 X X (elements correspond to configurable options). Available options include:

• Sealing Rating: IP68 (default)
• Output Protocol: Quadrature; USB/PS/2 & SUN (auto-select)
• Integrated Switches: No switches (default) (other switch options available)
• Mounting Style: Back-of-panel mount (default)
• Top & Body Style options: L50 No Seal, Non-removable ball; L50 Scraper Seal, Non-removable ball; L50 No Seal, Non-removable ball, Drain Hole; L50 Scraper Seal, Non-removable ball, Drain Hole
• Ball Colour options: Black; Metallic Red (Ruby); Metallic Yellow; Metallic Grey; Metallic White

Technical specifications

• Tracking method: infra-red optical tracking engine (solid-state sensing)
• Contact-less design (no moving sensing parts except ball)
• Sealing: up to IP68 (series dependent)
• Electrical outputs: USB & PS/2 (auto-select); Quadrature option available; SUN support noted for USB/PS/2 variant
• VX3™ integrated zoom feature for scroll-wheel-like functionality
• Optional self-draining and back-flushing features
• Multiple top-plate configurations to adjust sealing and tracking force
• Custom connector options available
• Designed for wash-down, decontamination and sterilisation
• Intended mounting: back-of-panel for OEM keyboards and consoles
• Suitable for demanding environments including medical, marine and industrial applications
