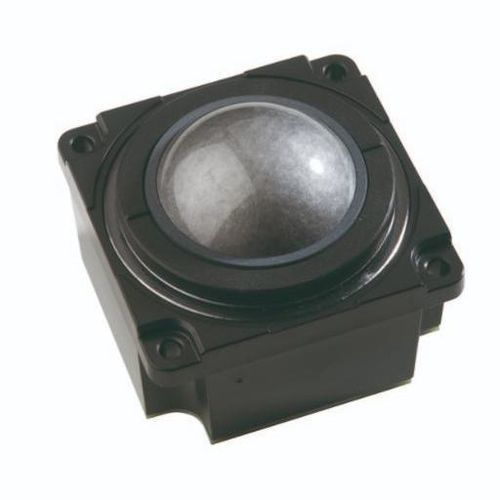

Optical trackball X50-700210- G

panel-mount2 inch (50 mm)waterproof

Product overview
50 mm optical trackball X50 designed for demanding industrial and embedded applications. Solid-state infrared optical sensing delivers reliable cursor control in harsh environments. Sealing up to IP68 and multiple interface options suit medical, marine, industrial and OEM consoles.

Features

• 50 mm optical ball with infrared solid-state tracking engine (Generation II)
• Sealing to IP68 for protection against dust and water ingress
• Output interfaces: Combined USB & PS/2 (auto-select) or TTL Quadrature
• VX3™ integrated zoom for scroll-wheel functionality
• External switch connections supported (USB/PS/2 only)
• Multiple top-plate and ball-retention ring configurations (including damper ring and PTFE seal)
• Custom connector and switch options available
• Various ball colours and finish options

Typical applications

• Medical systems and diagnostic consoles
• Marine and navigation equipment
• Industrial control consoles and HMI panels
• Custom keyboards and embedded OEM solutions

Product configuration / Ordering information

• Ordering code prefix: X50
• Sealing rating: up to IP68 (variant)
• Output protocol options: TTL Quadrature or Combined PS/2 & USB (auto-select)
• Integrated switches: configurable (option shown: no switches)
• Mounting: rear-panel mount (variant shown)
• Top & body options: damper ring; removable ball retention ring with ribs; PTFE ball seal variants
• Ball colours: Black, Metallic Grey (other colours available on request)
• Tracking engine: Optical Tracking Engine (Gen II)

Technical specifications

• Ball diameter: 50 mm (optical)
• Sensing: Infrared optical tracking engine, Generation II
• Sealing: up to IP68
• Interfaces: Combined USB & PS/2 (auto-select) or TTL Quadrature
• Scroll: VX3™ integrated zoom for scroll-wheel emulation
• External switches: supported via connections (USB/PS/2 only)
• Mounting: rear-panel mount option
• Top/body configurations: multiple removable retention ring and seal options
• Ball colours: Black; Metallic Grey (others on request)
• Application environments: rugged and demanding conditions (medical, marine, industrial, OEM)
