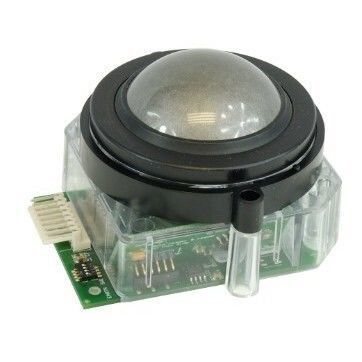

Laser trackball C50-860210

panel-mount2 inch (50 mm)precision

Product description
The C50 Series trackball is a contact-less, high-precision cursor control device using an advanced laser tracking engine. Its solid-state sensing provides accurate cursor motion at all speeds on virtually any ball while keeping moving parts to a minimum (only the ball). A removable top ring allows for easy cleaning, decontamination and sterilisation, supporting reliable operation in harsh environments. The unit is available with multiple electrical outputs and configurable tracking-force options and is designed for back-of-panel mounting in OEM keyboards and consoles.

Features

• Solid-state sensing technology — laser tracking engine
• Outputs: USB & PS/2 (auto-select) or SUN Systems
• Smooth operation in rugged and hygienic environments
• Various top-plate and body configurations
• Custom connector options available
• Multiple ball colour choices
• External switch connections (USB/PS2 only)

Typical Applications

• Medical systems
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions

Product configuration / Ordering code
Ordering code example: C50-8602XX (configurable options include sealing rating, output protocol, integrated switches, mounting style, top & body style, ball colour and suffix).

Technical specifications

• Sensing technology: Laser tracking engine (solid-state)
• Contact-less operation; no moving sensing parts except the ball
• Outputs: Combined PS/2 & USB (auto-select), SUN Systems (other options via custom configuration)
• External switch connections supported with USB/PS2 outputs
• Mounting: Designed for back-of-panel mounting for OEM integration
• Top & body options: C50 Damper Ring; C50 PTFE Ball Seal
• Ball colours: Black; Metallic Grey (additional colours may be available)
• Integrated switches: Option for no switches (other switch counts configurable)
• Sealing rating: Configurable (based on IP levels to IEC 60529)
• Designed for rugged use and easy cleaning, decontamination and sterilisation (removable top ring)
• Custom connector options and OEM customisation available
