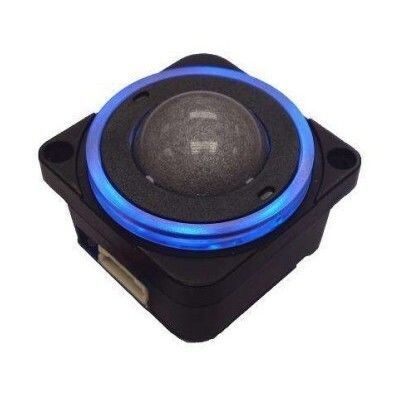

Laser trackball X25-760210- KH0B

panel-mount1 inch (25 mm)waterproof

Product description
The X25 HALO Series is a high‑precision, contact‑less laser trackball designed for back‑of‑panel OEM keyboards and consoles. It combines a Generation II laser tracking engine with a HALO illuminated ring to ensure accurate cursor control and quick visual location in low‑light environments.

Key functional points

• Contact‑less laser tracking (Generation II) for reliable cursor motion at all speeds
• Illuminated HALO ring available in multiple colours to aid location without intrusive backlit balls
• Removable top ring for straightforward cleaning, decontamination and sterilisation
• Designed for back‑of‑panel mounting in industrial and OEM console applications
• Sealable up to IP68 for harsh environments

Features

• Solid state sensing technology – laser tracking engine (Generation II)
• HALO light feature – various colours available
• Sealing up to IP68
• Outputs: USB & PS/2 (auto-select)
• Smooth operation in rugged environments
• Various top plate configurations
• Custom connector options available
• Various ball colours available
• VX3™ – integrated zoom feature for scroll wheel functionality
• External Switch Connections (USB/PS2 only)

Typical Applications

• Medical systems
• Sound and lighting consoles
• Video editing consoles
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions available

Ordering / Configuration options (summary)

• Ordering code base: X25
• Sealing Rating: up to IP68 (option shown: IP68)
• Output Protocol: Combined Interface - PS/2 & USB (auto-select); Quadrature
• Integrated Switches: No switches (option shown)
• Mounting Style: Mount to back of panel (back-of-panel mounting)
• Top & Body Style: X25 Damper Ring; X25 Rubber Ball Seal
• Ball Colour: Black; Metallic Grey (additional colours available)
• Suffix / HALO light colours: Blue; Green; Red; White; Yellow

Technical specifications

• Product family / series: X25 HALO Series
• Tracking: Laser tracking engine (Generation II), solid state sensing (no moving parts except ball)
• Contact-less operation
• Illuminated HALO ring around the ball (multiple colours)
• Removable top ring for cleaning, decontamination, sterilisation and maintenance
• Sealing: options up to IP68
• Outputs: USB & PS/2 (auto-select) and Quadrature options
• VX3™ integrated zoom feature for scroll wheel functionality
• External switch connections supported (USB/PS2 only)
• Various top plate / body configurations available
• Custom connector options available
• Designed for back-of-panel OEM keyboard and console mounting
• Available ball colours and HALO light colour options
