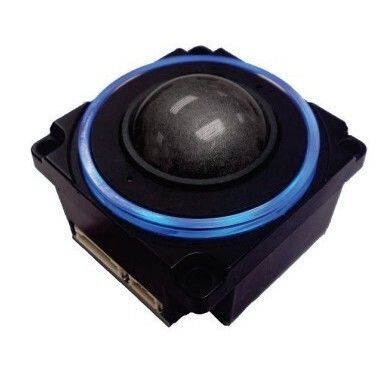

Optical trackball X38-700210- GH0B

panel-mount38 mmprecision

Description
The X38 HALO Series optical Trackball™ uses advanced infrared solid-state optical tracking to deliver precise, contact-less cursor control ideal for low-light and demanding industrial environments. The illuminated HALO ring around the ball aids location in low light without the intrusion of a fully backlit ball. The optical tracking engine provides consistent cursor response across speeds and ball variants while minimising moving parts for improved reliability. The removable top ring allows for straightforward cleaning, decontamination and sterilisation to maintain performance in harsh or regulated settings. The X38 HALO range is offered with multiple electrical outputs, tracking force options and sealing up to IP68 and is intended for back-of-panel mounting in OEM keyboards and consoles.

Features

• Solid-state infrared optical tracking engine (Generation II)
• HALO illuminated ring – multiple colours available
• Sealing capability up to IP68
• Outputs: USB & PS/2 (auto-select)
• Smooth operation in rugged environments
• Various top plate configurations
• Custom connector options available
• Various ball colours available
• VX3™ – integrated zoom feature for scroll wheel functionality
• External switch connections (USB/PS2 only)

Typical Applications

• Medical systems
• Sound and lighting consoles
• Video editing consoles
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions

Product Configuration (examples of available options)

• Sealing Rating: IP68 (option)
• Output Protocol: Quadrature or Combined Interface (PS/2 & USB)
• Integrated Switches: No switches (option shown)
• Mounting Style: Mount to back of panel
• Top & Body Style: X38 Damper Ring or X38 PTFE Ball Seal
• Ball Colour: Black, Metallic Grey (additional colours available)
• Halo Light Colours (suffix options): Blue, Green, Red, White, Yellow

Technical specifications

• Contact-less infrared optical tracking (solid-state sensing)
• Illuminated HALO ring around ball for low-light locating
• Removable top ring for cleaning, decontamination and sterilisation
• Sealing capability up to IP68
• Electrical outputs: USB & PS/2 (auto-select) and Quadrature variants
• VX3™ integrated zoom feature for scroll wheel functionality
• External switch connection support (USB/PS2 only)
• Designed for back-of-panel mounting in OEM keyboards and consoles
• Various top plate and connector customization options available
• Multiple ball and HALO light colour options
