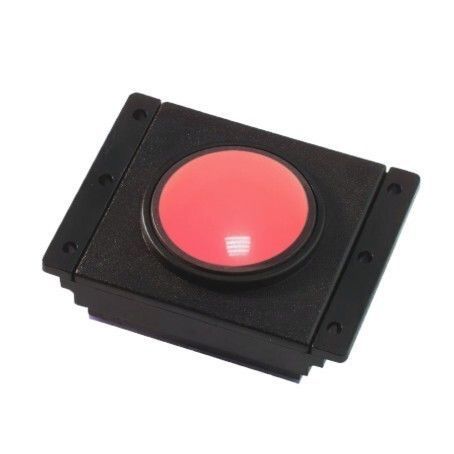

Mechanical trackball P38-16041B

panel-mount38 mmprecision

Overview
The P38 Series backlit mechanical trackballs are compact back-of-panel pointer modules for OEM keyboards and consoles. Available with multiple backlit ball colours, electrical outputs and sealing options up to IP65, they suit applications requiring reliable pointer control in confined or rugged installations. Stainless steel shafts and bearings provide precise tracking while a patented floating seal reduces ingress of liquids and particulates. Multiple top-plate and chassis configurations allow selection of sealing level, tracking force and installation style.

Features

• Sealing options up to IP65 (BS EN 60529)
• Outputs: USB, PS/2 (auto-select) and TTL Quadrature
• Designed for smooth operation in rugged environments
• Stainless steel shaft and bearings for precise control
• Top plate configurations offering varied sealing and tracking force
• Multiple backlit ball colours (translucent and solid variants)
• Custom connector options and external switch connections where supported

Typical Applications

• Control systems
• Medical systems
• Navigation systems
• Compact keyboards
• Industrial consoles
• OEM custom solutions

Product configuration (available options)

• Sealing Rating
  • IP40
  • IP51
  • IP65
• Output Protocol
  • Combined Interface - PS/2 & USB
  • Quadrature (TTL)
• Integrated Switches
  • No switches
• Mounting Style
  • Universal Adapter Style
• Top & Body Style
  • P38 No Seal
  • P38 Sealed
• Ball Colour
  • Backlit Blue (translucent)
  • Backlit Red (translucent)
  • Backlit White (translucent)
  • Backlit Yellow (translucent)
  • Backlit Blue / Navy (blue ball)
• Suffix
  • Standard (No Suffix)

Technical specifications

• Series: P38
• Sealing: up to IP65 (depending on configuration)
• Electrical outputs: USB, PS/2 (auto-select), TTL Quadrature
• Materials: stainless steel shafts and bearings
• Ingress protection: patented floating seal technology to limit ingress of liquids and particulates
• Mounting: back-of-panel mounting for OEM keyboards and consoles
• Top/body options: sealed or no-seal variants
• Ball options: multiple backlit colours and non-translucent colour options
• Customisation: connector options and external switch connections where supported
• Environments: suited to rugged industrial and medical applications
