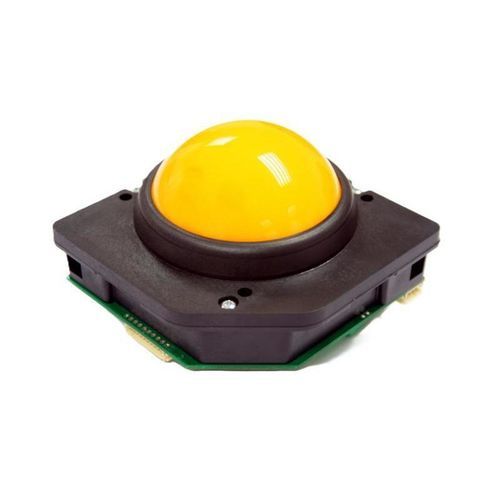

Mechanical trackball P75-160240

panel-mountprecisionrugged

Product Overview
The P75 Standard is a mechanical trackball series designed for demanding industrial and OEM console applications. It features a high-mass ball and precision stainless-steel shafts and bearings for accurate pointer control. The unit is intended for back-of-panel mounting as part of keyboards and control consoles.

Features

• Sealing options up to IP51 (BS EN 60529)
• Outputs: USB, PS/2 (auto-select) or SUN Systems
• High-mass ball for precise control
• Smooth operation in rugged environments
• High-grade stainless steel shafts and bearings
• Multiple top-plate configurations for sealing and tracking force options
• Custom connector and ball colour options
• External switch connections supported (USB/PS/2 only)

Typical Applications

• Control systems
• Navigation systems
• Sound and lighting desks
• Industrial consoles
• OEM custom solutions

Product configuration / Ordering code
Ordering code pattern: P75 - X - X - 0 2 4 - X

• Sealing Rating: IP40 or IP51
• Output Protocols: Combined Interface (PS/2 & USB); SUN Systems; USB/PS/2 & SUN
• Integrated Switches: 0 - No switches (default)
• Mounting Style: 2 - Back-of-panel mount (default)
• Top & Body Style: P75 Non-sealed (default)
• Ball Colour options: Black, Yellow
• Suffix: Standard (No suffix) (default)

Technical specifications

• Series: P75
• Sealing: up to IP51 (BS EN 60529)
• Output interfaces: USB, PS/2 (auto-select), SUN Systems
• Mechanical: high-mass ball; high-grade stainless steel shafts and bearings
• Mounting: designed for back-of-panel mounting (suitable for OEM keyboards and consoles)
• Switches: external switch connections supported (USB/PS/2 only); integrated switches available (default: none)
• Top & body configurations: multiple top plate options (including non-sealed)
• Ball colours: Black, Yellow (additional colours may be available)
• Customization: custom connector and top-plate options available
