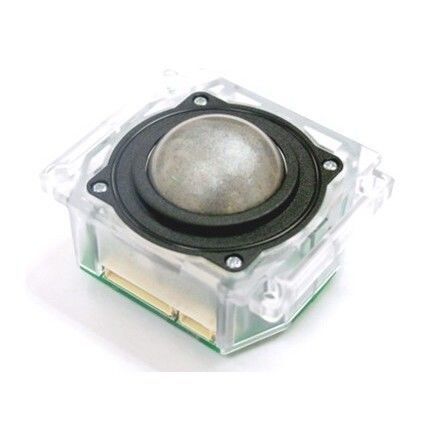

Optical trackball L38-70021- 0

panel-mount38 mmwaterproof

Product description
The L38 Series trackball uses infra-red optical solid-state tracking to provide contact-less, accurate cursor control across all speeds. Designed for demanding environments, the unit offers IP68 sealing options, multiple electrical outputs and configurable top-plate styles. Its solid-state sensing (no moving sensing parts) enables washing, decontamination and sterilisation, while the form factor is optimised for back-of-panel mounting in OEM keyboards and consoles.

Features

• Infra-red optical solid-state tracking engine
• Sealing options up to IP68
• Outputs: USB, PS/2 (auto-select), Quadrature and combined interfaces
• Smooth operation in rugged environments
• Various top-plate configurations for sealing and tracking force
• Custom connector options
• Optional self-draining and back-flushing features
• Multiple ball colour options (Black, Metallic Grey)
• VX3™ integrated zoom feature for scroll-wheel functionality

Typical Applications

• Medical systems
• Marine systems
• Custom keyboard applications
• Industrial consoles
• OEM custom solutions

Product configuration / Ordering
Ordering code format shown on product page: L38-7 X 0 2 X X (each position corresponds to a selectable configuration field).

Configuration options

• Sealing rating: IP68
• Output protocol: Quadrature; combined interface (PS/2 & USB)
• Integrated switches: No switches (other options available)
• Mounting style: Back-of-panel mount
• Top & body style options: L38 Scraper Seal (non-removable ball); L38 No Seal (non-removable ball); L38 No Seal with drain hole; L38 Scraper Seal with drain hole
• Ball colour options: Black; Metallic Grey

Technical specifications

• Model family: L38 Series
• Tracking technology: Infra-red optical, solid-state (contact-less sensing)
• Cursor performance: Accurate motion at all speeds
• Sealing: Options up to IP68
• Electrical outputs: USB, PS/2 (auto-select), Quadrature and combined interfaces
• Mechanical design: Non-removable ball options; multiple top-plate configurations
• Mounting: Designed for back-of-panel mounting (suitable for OEM keyboards and consoles)
• Optional features: Friction controls, custom connectors, self-draining and back-flushing
• Special feature: VX3™ integrated zoom for scroll-wheel functionality
• Environments: Washable, decontaminable and sterilizable for use in demanding conditions
