Temperature control panel 4-channelmulti-channelmodular
Add to favorites
Compare this product
Characteristics
- Application
- temperature
- Number of channels
- 4-channel, multi-channel
- Other characteristic
- modular, microprocessor, with display
Description
Product description

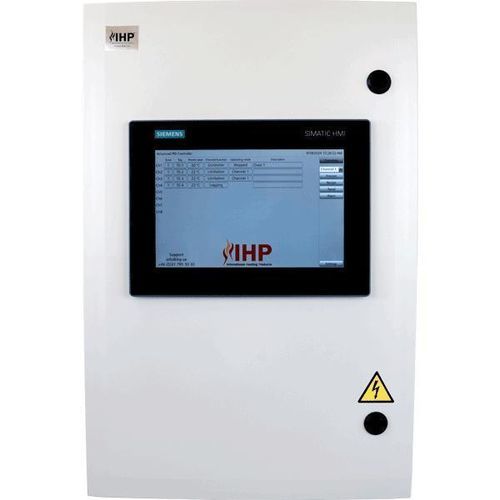

The 226-ADVPID control cabinet integrates a Siemens SIMATIC PLC and HMI to provide PID-based temperature control, data logging and programmable channel schedules. The system ships with 4 channels included and is expandable up to 32 channels. Channels can be configured as disabled, PID controller or logging channels. Sensor inputs accept PT100 (2- or 3-wire) and thermocouples types J and K (sensors not included). The cabinet requires a separate power module sized to the connected heater load.
Technical specification
Outer casing: plastic
Dimensions: 600 x 400 x 200 mm
PLC: Siemens SIMATIC DP CPU 1510SP-1 PN
HMI: Siemens SIMATIC HMI MTP1000 Unified Basic
IHP software: standardized PLC and HMI programs for control and logging
4 channels included (expandable to 32 via option)
Channel modes: disabled, PID, controller and logging
Heater and sensor connections on terminal blocks
Compatible sensors: PT100 (2- or 3-wire), Thermocouple types J and K (sensors not included)
Earth-fault circuit breaker: not included (assumes external protection on CEE 400V socket)
Includes CE manual
Standard range
Article number | Description
226-ADVPID | Advanced PLC PID Control cabinet optimized for PT100, TC J and TC K
Options
Article number | Description
226-4channels | Enables 4 extra temperature zones (max. 32 channels)
226-recipe | Customized recipe/driving cycle
226-router | Built-in Router: Custom Network Interface Modbus TCP Server
Technical specifications
The 226-ADVPID control cabinet integrates a Siemens SIMATIC PLC and HMI to provide PID-based temperature control, data logging and programmable channel schedules. The system ships with 4 channels included and is expandable up to 32 channels. Channels can be configured as disabled, PID controller or logging channels. Sensor inputs accept PT100 (2- or 3-wire) and thermocouples types J and K (sensors not included). The cabinet requires a separate power module sized to the connected heater load.
Technical specification
Outer casing: plastic
Dimensions: 600 x 400 x 200 mm
PLC: Siemens SIMATIC DP CPU 1510SP-1 PN
HMI: Siemens SIMATIC HMI MTP1000 Unified Basic
IHP software: standardized PLC and HMI programs for control and logging
4 channels included (expandable to 32 via option)
Channel modes: disabled, PID, controller and logging
Heater and sensor connections on terminal blocks
Compatible sensors: PT100 (2- or 3-wire), Thermocouple types J and K (sensors not included)
Earth-fault circuit breaker: not included (assumes external protection on CEE 400V socket)
Includes CE manual
Standard range
Article number | Description
226-ADVPID | Advanced PLC PID Control cabinet optimized for PT100, TC J and TC K
Options
Article number | Description
226-4channels | Enables 4 extra temperature zones (max. 32 channels)
226-recipe | Customized recipe/driving cycle
226-router | Built-in Router: Custom Network Interface Modbus TCP Server
Technical specifications
- Outer casing: plastic
- Dimensions: 600 x 400 x 200 mm
- PLC: Siemens SIMATIC DP CPU 1510SP-1 PN
- HMI: Siemens SIMATIC HMI MTP1000 Unified Basic
- IHP software: standardized and tested PLC and HMI software
- Channels: 4 included (expandable up to 32 via options)
- Channel modes: disabled, PID, controller and logging
- Sensor compatibility: PT100 (2- or 3-wire), Thermocouple types J and K (sensors not included)
- Heater and sensor connections on terminal blocks
- Requires separate power module sized to the power load
- Earth-fault circuit breaker: not included (assumes external protection)
- Includes CE manual
