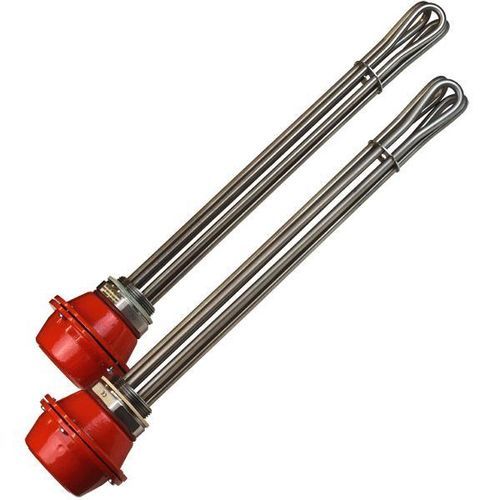

Flange immersion heater

copperstainless steelsteel

Overview
Immersion heaters are commonly used to heat water and other liquids. They are applied in water heaters, boilers, commercial kitchens, industrial tanks and baths, and dishwashers.

Design and materials

• IHP manufactures immersion heaters with nipples of type G (gas thread), type M (metric thread) and with DN flange.
• Available tube materials include copper, stainless steel, acid-resistant steel, 254 SMO, Incoloy® 800, Incoloy® 825, aluminum and titanium.

Options and accessories

• Heaters can be supplied with a sensor tube for easy connection of sensors, thermostats and temperature limiters.
• A thermostat with knob can be integrated directly on the connection box.
• For industrial applications IHP offers molded connection boxes to increase mechanical strength and resistance.

Related products

• Over‑the‑side heaters
• Hydraulic oil heater
• Immersion heaters for oil
• Tubular heaters
• Ceramic bobbin heaters 700°C

Technical specifications

• Surface load up to 15 W/cm²
• Working temperature up to 850°C
• Customized power supply with internal ∆- or Y-connection
• Common nipples for IHP immersion heaters: G¾", G1", G1 ¼", G1 ½", G2", G2 ½", M45x2, M77x2
• Common tube materials: copper, stainless steel, acid-resistant steel, 254 SMO, Incoloy® 800, Incoloy® 825, aluminum and titanium
