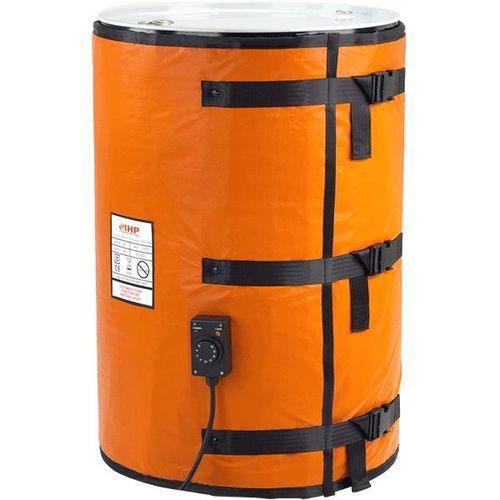

Food drum heater 30-HSHP200 series

for the food industryelectricwith thermostat

Product description
IHP's drum heater in PTFE (Teflon) coated glass-fiber cloth is designed for use in food processing environments. The PTFE coated surface complies with EU Commission Regulation (EU) No 10/2011 and US FDA 21 CFR 177.1550 for food-contact materials.

The heater is fitted with quick-release buckles, an adjustable thermostat (20–220°C) and a four-metre connection cable. For even heat distribution and improved energy performance the heater includes built-in E‑glass fiber insulation.

The standard product is sized for 200 L drums; custom sizes are available on request.

Related products

• Drum insulation jackets
• Side drum heater 90°C
• Drum heater digital 90°C
• Silicone drum heaters 120°C
• Base drum heater 150°C
• Silicone drum heater IP65 200°C
• Heating jacket drum digital 200°C
• High temperature drum heaters 220°C

Technical specification (table)
Drum heater in PTFE-coated glass-fiber cloth (Teflon)
Built-in insulation: E‑glass fiber
Supply: 230 V or 110 V
Thermostat: adjustable 20–220°C (options 0–90°C and 0–120°C available)
Protection class: IP40
Double insulated construction for enhanced safety
Connection cable: 4 m
Food approvals: EU 10/2011 and US FDA 21 CFR 177.1550
Optional insulation lid available
NOTE! The drum heater must never overlap.

Standard range (table)
Article number | Dimension | Power | Supply | Drum diameter | Drum size
30-HSHP200-1 | 1950 x 850 mm | 1800 W | 230 V | ø573–ø611 mm | 200–210 litre
30-HSHP200-2 | 1950 x 850 mm | 1800 W | 110 V | ø573–ø611 mm | 200–210 litre

Features / technical specifications

• Material: PTFE (Teflon) coated glass-fiber cloth
• Insulation: built-in E‑glass fiber
• Supply options: 230 V or 110 V
• Thermostat: adjustable 20–220°C (options 0–90°C and 0–120°C)
• Protection class: IP40
• Construction: double insulated for enhanced safety
• Connection cable: 4 m
• Food approvals: EU 10/2011 and US FDA 21 CFR 177.1550
• Optional: insulation lid available
• Installation note: the drum heater must never overlap
• Standard sizes: designed for 200–210 litre drums (ø573–ø611 mm)
• Standard product codes: 30-HSHP200-1 (230 V, 1800 W), 30-HSHP200-2 (110 V, 1800 W)
