Flange immersion heater

stainless steeltitaniumPTFE

Description

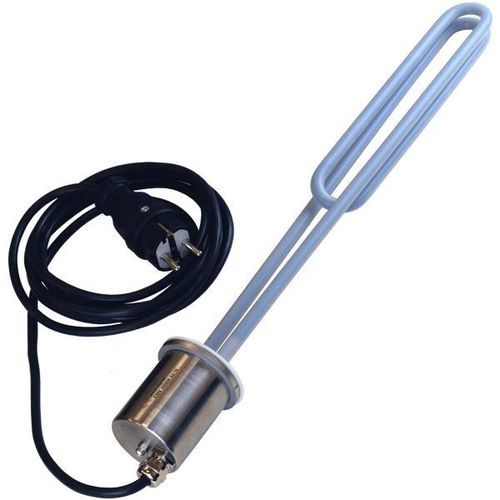

Industrial over-the-side heaters heat liquids in drums, baths, vessels and tanks by being mounted from above and partially or fully immersed in the medium. IHP over-the-side heaters are designed for water, oils, acids, alkaline mixtures and various chemical baths.

Materials and construction
IHP typically supplies heaters with stainless steel tubes, PTFE-coated tubes or titanium tubes. Steatite heating elements can be placed in steel, glass or porcelain tubes. Designs are adapted and customized for specific liquids and environments.

Applications

• Heating of process baths and tanks
• Oil and hydraulic fluid heating
• Chemical and corrosion-prone liquids
• Laboratory and production vessels

Design features and controls

• Option for inactive zones so heating elements remain covered by liquid
• Integrated sensors and thermocouples or separate sensor tubes for temperature control
• Protection against overheating via thermostats or electronic control cabinets

Mounting and options

• Flanges, nipples and bends
• Handles and custom mounting kits
• Zoning and phased supply to match operating requirements

Related products

• Hydraulic oil heater
• Immersion heaters for oil
• Immersion heaters for water
• Tubular heaters
• Ceramic bobbin heaters 700 °C

Technical Specification

• Surface load up to 10 W/cm² depending on the liquid characteristics
• Working temperature up to 600 °C
• Supply and zoning configured according to operating conditions and requirements
• Common tube diameters: ø6.5 mm; ø8 mm; ø8.5 mm; ø10 mm; ø12.5 mm; ø16 mm; ø20 mm; ø25 mm; ø30 mm; ø33 mm; ø40 mm; ø52 mm
• Good durability in corrosive liquids
• Adjusted surface load options for heating flammable liquids
