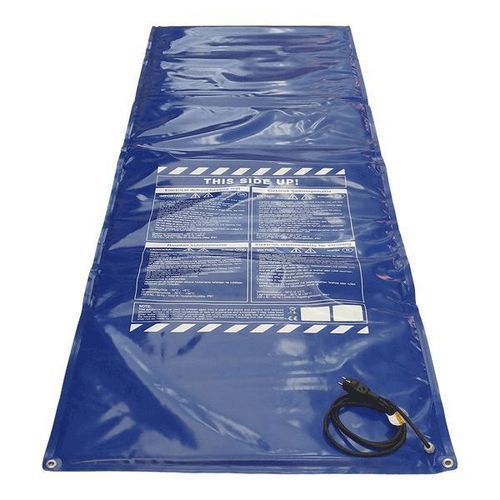

IP67 heating mat 263-300100 series

PVCfor curing

Product description
Defrost heating blankets are designed for thawing and outdoor use in construction and utilities. Typical applications include curing, thawing frozen soil and sand, preheating foundations, protecting construction materials from freezing, melting snow and ice, temperature maintenance in telecom cables and support for excavation works.

Key uses

• Curing
• Thawing frozen soil and sand
• Preheating construction grounds
• Freeze protecting construction materials
• Melting snow and ice
• Heat maintenance in electrical telecom cables
• Excavation works

Design and features

• Top-insulated design directing heat downwards
• Outer layer: durable PVC — water resistant and weatherproof
• Built-in bimetal thermostat set to fixed 70°C
• Eyelets in corners for mechanical fastening
• Ingress protection rating IP67

Installation and operation
Roll out the defrost blanket over the surface to be heated, connect to the 230V supply using the Schuko plug or CEE connector, and operate until the surface is frost-free. After use, disconnect, roll up and store in dry conditions.

Performance
Under normal conditions the blanket defrosts up to 30 cm of soil in 24 hours and up to 60 cm in sandy soils.

Technical specification

• Outer layer: durable PVC
• Insulation: sewn insulation
• Power cable: 2 m (Schuko plug or CEE industrial connector)
• Supply voltage: 230V
• Protection: install on circuit with residual current circuit breaker (RCD)
• Fixed operating temperature: 70°C
• Mounting: eyelets in the corners
• Ingress protection: IP67

Standard range
Article number | Dimensions | Power | Supply
263-300100SCH | 3x1m Schuko connector | 1050W | 230V
263-300100CEE | 3x1m blue CEE connector | 1050W | 230V

Characteristics / technical specifications

• Outer layer: durable PVC
• Insulation: sewn insulation
• Power cable: 2 m (Schuko or CEE)
• Supply voltage: 230V
• Protection: use RCD-protected circuit
• Operating temperature: fixed 70°C
• Mounting: corner eyelets
• Ingress protection: IP67
• Typical defrost capacity: up to 30 cm soil / 24 h (up to 60 cm in sandy conditions)
• Standard articles: 263-300100SCH (3x1m Schuko, 1050W, 230V), 263-300100CEE (3x1m CEE, 1050W, 230V)
