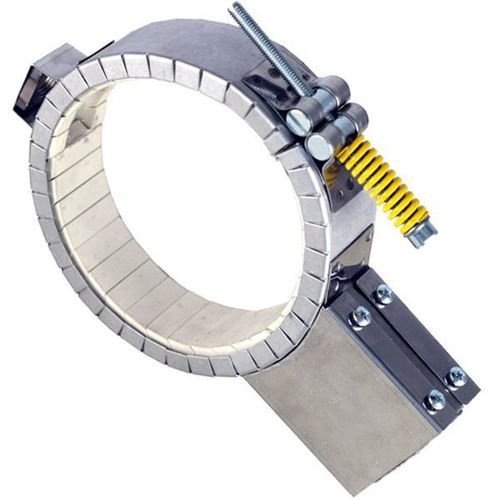

Heat-resistant band heater

insulatedfor pipesceramic

Product description
Ceramic band heaters transfer heat efficiently into industrial machine parts such as injection molds, extruders, pipes and circular containers. The construction provides reliable heat delivery and quick mounting using a clamping screw and spring.

Energy efficiency and construction
Ceramic fiber insulation placed between the ceramic elements and the stainless steel casing reduces energy consumption by up to 30% compared with less advanced designs. The heater can be supplied with a perforated stainless casing for forced ventilation. Custom manufacturing options include various dimensions, multiple connection box types and shaped cut-outs to fit specific applications.

Related products

• Mica band heaters 320°C
• Mica band heaters expandable 320°C
• Ceramic band heaters 900°C

Technical Specification

• Surface load: up to 8 W/cm²
• Maximum working temperature: 420°C
• Voltage: customized
• Phases: Single phase / Dual phase / Three phase (specify ∆ or Y connection)
• Built-in sensor options: Type J or Type K thermocouples; other sensors available on request
• Heating element: Nickel-Chromium (NiCr) 80/20 resistance wire
• Insulation: Ceramic fiber insulation included (improved energy efficiency, up to 30% savings)
• Casing: Stainless steel (optional perforated casing for forced ventilation)
• Mounting: clamping screw and spring for easy installation
• Customization: different dimensions, multiple connection box choices, and cut-outs in various shapes
