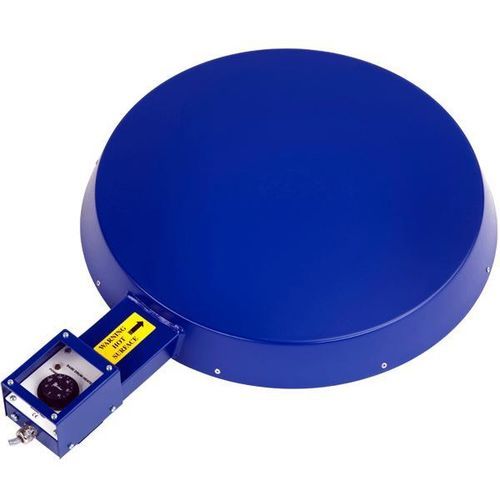

Soap drum heater 30-HBD series

industrialwith thermostat

Product description
This base drum heater is designed as a support-mounted heater where the drum is placed directly on the circular heated area. The casing is made from 2 mm steel plate, making the unit suitable for demanding industrial environments such as warehouses, construction sites and chemical facilities.

The heater provides even heat distribution across the heating surface, features an adjustable analogue thermostat 0–150°C and comes with a two-meter supply cable.

IHP base drum heaters are specially designed for melting or reducing the viscosity of substances such as soaps, fats, resins, lacquers and various oil-based products.

This base drum heater can be used together with IHP's other drum heaters and drum insulation jackets to optimize heating performance.

Related products

• Drum insulation jackets
• Side drum heater 90°C
• Drum heater digital 90°C
• Silicone drum heaters 120°C
• Silicone drum heater IP65 200°C
• Heating jacket drum digital 200°C
• Drum heaters food grade 220°C
• High temperature drum heaters 220°C

Technical specification

• Robust steel construction (2 mm steel plate)
• Power supply: 230 V or 110 V
• Thermostat: adjustable analogue 0–150°C
• Built-in insulation: 50 mm
• Protection class: IP40
• Moisture and chemical resistant
• Supply cable length: 2 m
• Outer dimensions (L x W x H): 880 x 600 x 105 mm
• Standard power: 900 W

Standard range

• 30-HBD-1 | ø550 mm | ø600 mm | 70 mm | 900 W | 230 V | 200–210 liter
• 30-HBD-2 | ø550 mm | ø600 mm | 70 mm | 900 W | 110 V | 200–210 liter

Technical features

• Designed for melting/reducing viscosity of soaps, fats, resins, lacquer and oil-based products
• Even heat distribution across the heating surface
• Compatible with other IHP drum heaters and drum insulation jackets
• Easy placement: drum sits directly on heated base
• Two power supply options for site flexibility (230 V / 110 V)
