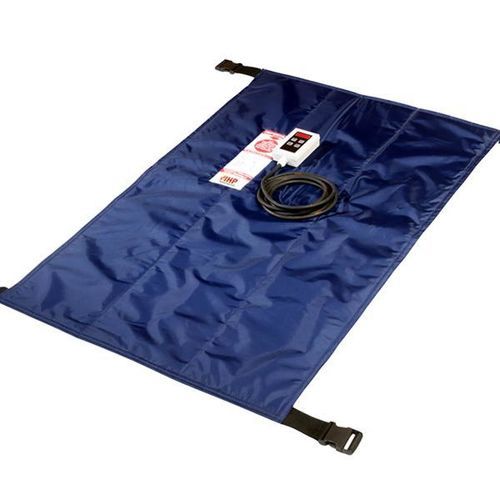

Electric heating jacket 260 series

polyesterfor curing

Product description
IHPs Series 260 industrial heating blankets are designed for applications such as curing composite materials and heating rotor blades for wind turbines. The blankets are flexible, lightweight and conformable. Sewn insulation directs heat to the workpiece and reduces power loss. Construction uses Teflon-treated heating cable insulated with polyester and an outer nylon layer.
Custom shapes, cut-outs, holes and slots can be produced on request; a standard range of common dimensions is also available.
The blankets are supplied with a digital temperature controller (0–90°C) that includes controlled temperature rise (ramp) and a timer function for process control.
Safety: the blanket must never overlap itself and requires a protective earth connection.

Technical specification
Outer layer: nylon cloth
Insulation: sewn 8 mm polyester
Heating element: sewn Teflon-treated heating cable
Controller: digital 0–90°C with ramp and timer functions
Supply: 230V or 110V (custom supply optional)
Accessories: adjustable buckles and Velcro straps available as options
Cable: three-metre supply cable
Protective earth required

Standard range (article number | dimensions | power | supply)
260-6060-1 | 600 x 600mm | 200W | 230V
260-7070100-1 | 700 x 700 x 1000mm (TRI) | 200W | 230V
260-10029-1 | 1000 x 290mm | 200W | 230V
260-10050-1 | 1000 x 500mm | 270W | 230V
260-100100-1 | 1000 x 1000mm | 450W | 230V
260-12080-1 | 1200 x 800mm | 450W | 230V
260-130130-1 | 1300 x 1300mm | 750W | 230V
260-15030-1 | 1500 x 290mm | 220W | 230V
260-20050-1 | 2000 x 500mm | 560W | 230V
260-200100-1 | 2000 x 1000mm | 1200W | 230V
260-30050-1 | 3000 x 500mm | 700W | 230V
260-38029-1 | 3800 x 290mm | 400W | 230V
260-6060-2 | 600 x 600mm | 220W | 110V
260-10050-2 | 1000 x 500mm | 270W | 110V
260-100100-2 | 1000 x 1000mm | 450W | 110V
260-130130-2 | 1300 x 1300mm | 450W | 110V
260-20050-2 | 2000 x 500mm | 560W | 110V
260-200100-2 | 2000 x 1000mm | 1200W | 110V
260-30050-2 | 3000 x 500mm | 700W | 110V

Features / technical specifications

• Outer layer: nylon cloth
• Insulation: sewn 8 mm polyester
• Heating element: sewn Teflon-treated heating cable
• Controller: digital 0–90°C with ramp (controlled temperature rise) and timer
• Supply: 230V or 110V (custom voltages on request)
• Safety: protective earth; blanket must never overlap itself
• Accessories: adjustable buckles and Velcro straps optional
• Cable: three-metre supply cable
• Standard range covers multiple dimensions and power levels from ~200W to 1,200W
