Heating strip

micacustom

Product overview

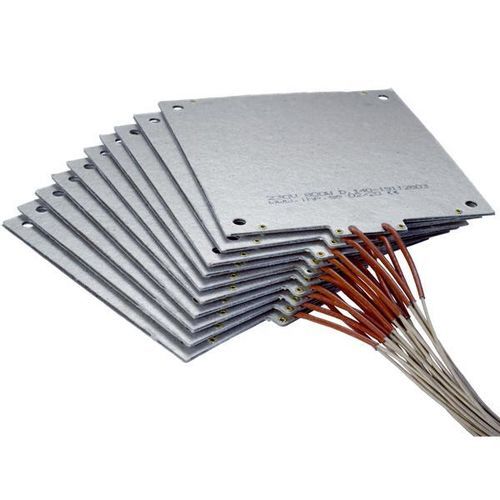

Mica heaters are manufactured as open mica flat heating elements without an outer casing. They provide a thin, fast-response heating source commonly used in food service equipment, packaging machines, plastics and rubber processing, and heating tools.

Advantages and construction
The open design yields a very thin profile (typically 1.5–2 mm) and fast, efficient heat-up. Mica heaters use high-quality resistance wire (NiCr 80/20) wound on a micanite sheet and sandwiched between outer micanite layers, offering excellent thermal transmission and energy efficiency.

Customization
Mica heaters can be tailored in shape, with holes, cutouts, slots, multiple heating zones, custom voltages and integrated temperature sensors (thermocouple or other options).

Related products

• Mica flat strip heaters 320°C
• Ceramic flat heaters 420°C

Technical specifications

• Surface load up to 4 W/cm² (recommended up to 3.5 W/cm²)
• Maximum operating temperature: 400°C
• Custom voltages and zoning available
• Built-in thermocouple type J or K (other sensors optional)
• Resistance wire: Nickel/Chromium (NiCr) 80/20
• Insulation: pure micanite
