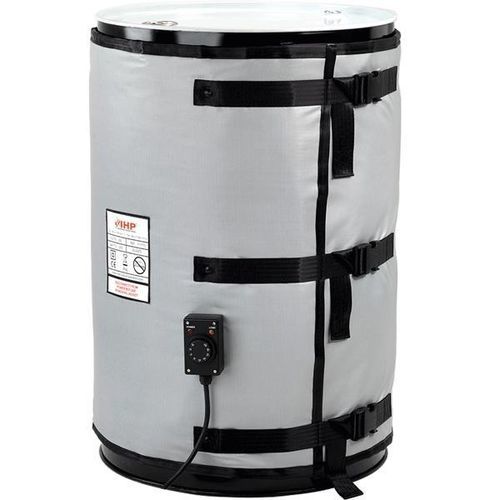

Chemical drum heater 30-HTSD series

for soapfor painthigh-temperature

Product description
IHP's drum heaters for high temperatures are designed for operation up to 220°C. The outer cover is made of silicone-coated glass fiber cloth for easy cleaning and wiping.
The drum heater is easy to mount with buckles and includes an adjustable analogue thermostat (20–220°C).
Suitable for heating media with high water content such as waxes, paints, chemicals and soap. Built-in glass fiber insulation reduces heat losses and energy consumption.
Standard assortment for this drum heater is available for drum sizes 25, 50, 105 and 200 liters.

Technical specification (table)
Drum heaters of silicone coated glass fiber cloth
Built-in insulation of glass fiber (E-glass)
Supply 230V or 110V
Thermostat 20-220°C (0-120°C available as option)
Class IP40
Double insulated construction for high security
Four meter power cable
NOTE! The drum heater must never overlap

Standard range (table)
Article number | Dimension | Power | Supply | Drum diameter | Drum sizes
30-HTSD25-1 | 1020 x 400mm | 300W | 230V | ø277 to ø315mm | 25 liter
30-HTSD25-2 | 1020 x 400mm | 300W | 110V | ø277 to ø315mm | 25 liter
30-HTSD50-1 | 1250 x 460mm | 450W | 230V | ø350 to ø388mm | 50 liter
30-HTSD50-2 | 1250 x 460mm | 450W | 110V | ø350 to ø388mm | 50 liter
30-HTSD105-1 | 1650 x 370mm | 700W | 230V | ø470 to ø515mm | 105 liter
30-HTSD105-2 | 1650 x 370mm | 700W | 110V | ø470 to ø515mm | 105 liter
30-HTSD200-1 | 1950 x 800mm | 1200W | 230V | ø573 to ø611mm | 200 liter
30-HTSD200-2 | 1950 x 800mm | 1200W | 110V | ø573 to ø611mm | 200 liter

Characteristics / technical specifications

• Material: Silicone coated glass fiber cloth (easy to clean)
• Insulation: Built-in glass fiber (E-glass)
• Operating temperature: up to 220°C
• Thermostat: Adjustable analogue 20-220°C (option 0-120°C)
• Supply voltages: 230V or 110V
• Protection class: IP40
• Construction: Double insulated
• Power cable length: 4 meters
• Installation note: The drum heater must never overlap
• Standard drum sizes available: 25 L, 50 L, 105 L, 200 L
• Standard article numbers and power ratings available (see standard range table above)
